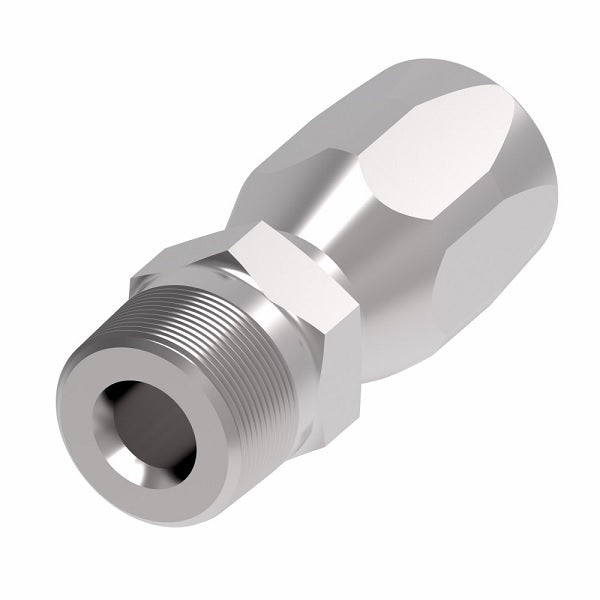

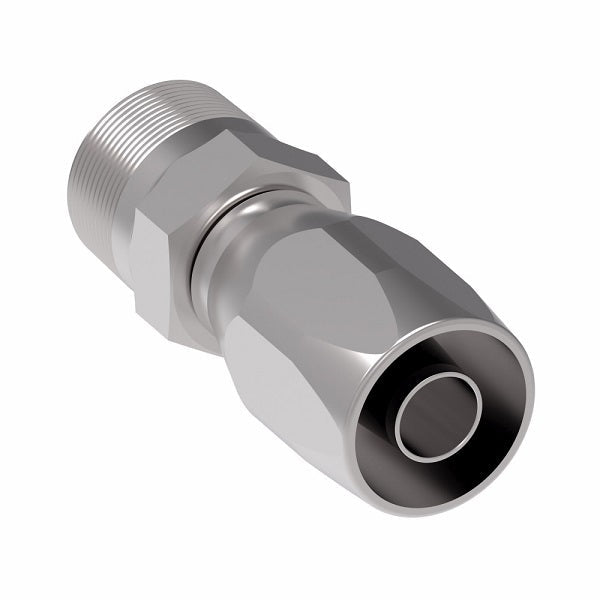

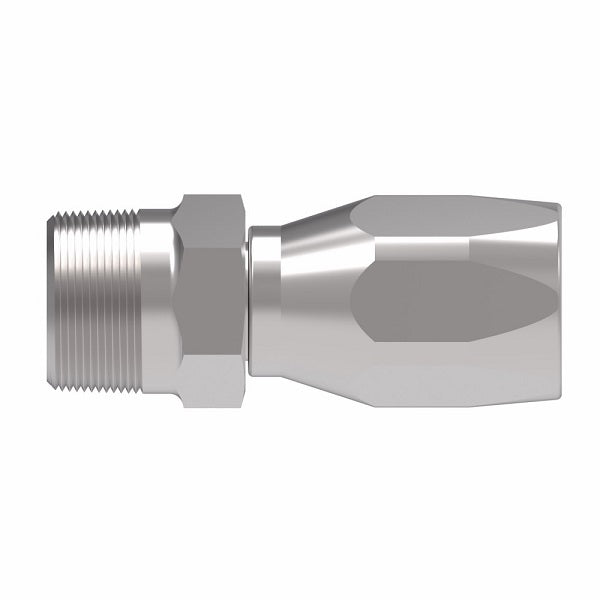

4412-6-8S Aeroquip by Danfoss | Male Pipe 100R5 Reusable Hose Fitting (2 Piece) | -06 Male Pipe x -08 Reusable Hose End | Steel
Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Male Pipe - Straight
Two Piece Fitting.
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $16.38 |
| 40–79 | $14.82 |
| 80+ | $13.07 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
|||||
|---|---|---|---|---|---|
| Steel Part Number |
Hose Size | Thread | A | D | EØ |
| 4412-2-4S | -04 | 1/8-27 | 1.68" | 0.93" | 0.13" |
| 4412-4-4S | -04 | 1/4-18 | 1.87" | 1.12" | 0.13" |
| 4412-4-5S | -05 | 1/4-18 | 1.96" | 1.18" | 0.17" |
| 4412-4-6S | -06 | 1/4-18 | 2.13" | 1.23" | 0.24" |
| 4412-6-6S | -06 | 3/8-18 | 2.13" | 1.23" | 0.23" |
| 4412-4-8S | -08 | 1/4-18 | 2.48" | 1.33" | 0.30" |
| 4412-6-8S | -08 | 3/8-18 | 2.48" | 1.33" | 0.36" |
| 4412-8-8S | -08 | 1/2-14 | 2.73" | 1.58" | 0.36" |
| 4412-8-10S | -10 | 1/2-14 | 2.88" | 1.59" | 0.46" |
| 4412-12-10S | -10 | 3/4-14 | 2.94" | 1.65" | 0.46" |
| 4412-8-12S | -12 | 1/2-14 | 3.24" | 1.68" | 0.49" |
| 4412-12-12S | -12 | 3/4-14 | 3.24" | 1.67" | 0.55" |
