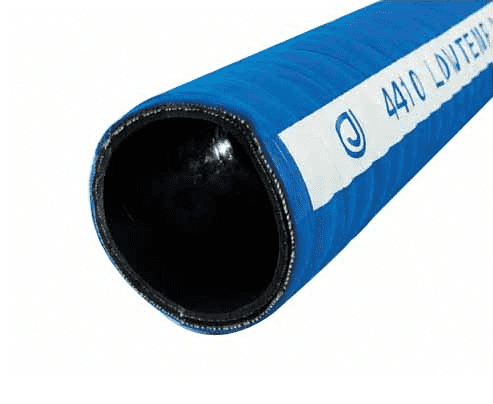

4410-0400-100 by Jason Industrial | 4410 Series | Low Temp Suction Hose | Corrugated | 150 PSI | 4" ID | 4.59" OD | Blue | Petroleum | 100ft

4410-0400-100 by Jason Industrial | 4410 Series | Low Temp Suction Hose | Corrugated | 150 PSI | 4" ID | 4.59" OD | Blue | Petroleum | 100ft

Sale price$4,326.95

Jason Industrial Inc. Hose - Material Handling Hose - 4410 Blue Low Temp Petroleum Suction Hose - Corrugated

Package Quantity: 100 FT

Buy More, Save More!
Quantity Price Each
2–3 $4,067.33
4–9 $3,894.26
10+ $3,461.56
Discounts applied in cart/checkout.

Product Data:

Series:
  • 4410 Series
Color(s):
  • Blue
Internal Diameter:
  • 4in

SPECIFICATIONS

Application: The transfer of petroleum products, including gasoline under pressure or gravity flow SAE Rating: N/A
Other Ratings: Tube: ARPM Class A Cover: ARPM Class B Tube: Nitrile, Black, Smooth, ARPM Class A
Reinforcement: Two-ply Synthetic Fabric, Double Wire Helix Cover: CR, Blue, Corrugated, ARPM Class B
Temperature Range: -65 deg. F (-55 deg. C) to +180 deg. F (+82 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4410 LOW TEMP PETROLEUM SUCTION -65°F (-55°C) 150 PSI WP 10.35 BAR. White mylar longitudinal stripe
Other Features:
  • Cover is resistant to weathering, abrasion, and the exposure to oil
  • Compounded to resist extreme cold temperatures to -65 deg. F
  • Remains flexible, even under extreme cold temperatures
  • All sizes are full vacuum
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4410-0300-100 3" 76.20mm 3.55" 90.17mm 2 150 PSI 10.35 BAR 29.0 inHg 1.83 lb./ft. 2.72 KG/m 6.00" 151.20mm 100ft
4410-0400-100 4" 101.60mm 4.59" 116.59mm 2 150 PSI 10.35 BAR 29.0 inHg 2.39 lb./ft. 3.56 KG/m 9.00" 226.80mm 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
