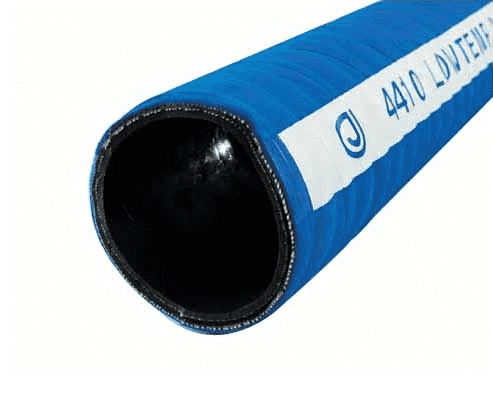

4410-0300-100 by Jason Industrial | 4410 Series | Low Temp Suction Hose | Corrugated | 150 PSI | 3" ID | 3.55" OD | Blue | Petroleum | 100ft

4410-0300-100 by Jason Industrial | 4410 Series | Low Temp Suction Hose | Corrugated | 150 PSI | 3" ID | 3.55" OD | Blue | Petroleum | 100ft

Sale price$3,213.82

Jason Industrial Inc. Hose - Material Handling Hose - 4410 Blue Low Temp Petroleum Suction Hose - Corrugated

Package Quantity: 100 FT

Buy More, Save More!
Quantity Price Each
2–3 $3,020.99
4–9 $2,892.44
10+ $2,571.06
Discounts applied in cart/checkout.

SPECIFICATIONS

Application: The transfer of petroleum products, including gasoline under pressure or gravity flow SAE Rating: N/A
Other Ratings: Tube: ARPM Class A Cover: ARPM Class B Tube: Nitrile, Black, Smooth, ARPM Class A
Reinforcement: Two-ply Synthetic Fabric, Double Wire Helix Cover: CR, Blue, Corrugated, ARPM Class B
Temperature Range: -65 deg. F (-55 deg. C) to +180 deg. F (+82 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4410 LOW TEMP PETROLEUM SUCTION -65°F (-55°C) 150 PSI WP 10.35 BAR. White mylar longitudinal stripe
Other Features:
  • Cover is resistant to weathering, abrasion, and the exposure to oil
  • Compounded to resist extreme cold temperatures to -65 deg. F
  • Remains flexible, even under extreme cold temperatures
  • All sizes are full vacuum
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4410-0300-100 3" 76.20mm 3.55" 90.17mm 2 150 PSI 10.35 BAR 29.0 inHg 1.83 lb./ft. 2.72 KG/m 6.00" 151.20mm 100ft
4410-0400-100 4" 101.60mm 4.59" 116.59mm 2 150 PSI 10.35 BAR 29.0 inHg 2.39 lb./ft. 3.56 KG/m 9.00" 226.80mm 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Product Data:

Series:
  • 4410 Series
Color(s):
  • Blue
Internal Diameter:
  • 3in

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
