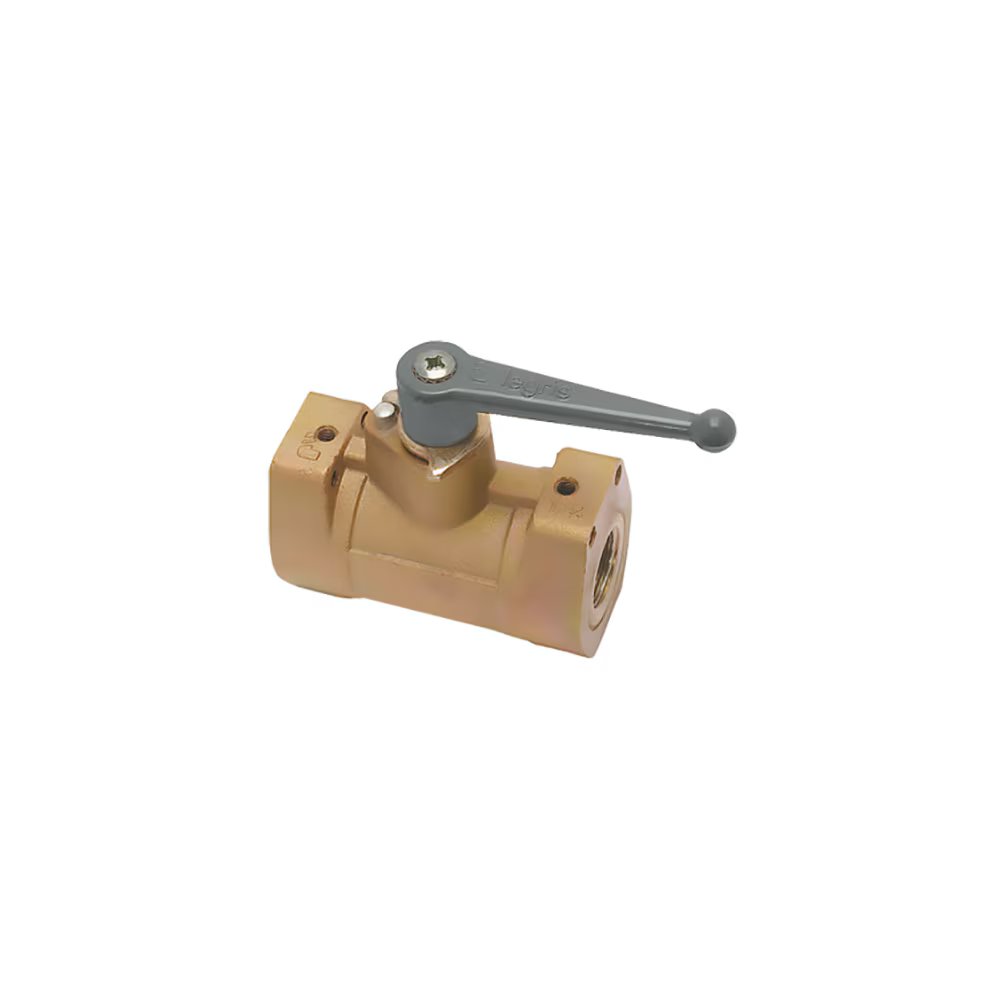

4402 07 13 by Parker | Legris In-Line High Pressure Ball Valve | 1/4" Female BSPP Thread | Straight | Brass | Pack of 5

4402 07 13 by Parker | Legris In-Line High Pressure Ball Valve | 1/4" Female BSPP Thread | Straight | Brass | Pack of 5

Sale price$743.81

by Parker Hannifin
High Pressure Series:4402 2/2 In-Line High Pressure Ball Valve, Female BSPP Thread

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
5–14 $699.18
15–29 $632.24
30+ $557.86
Discounts applied in cart/checkout.

Product Data:

Series:
  • 4402 Series
Shape:

Straight

Ends Configuration:
  • 1/4in Female BSPP
  • 1/4in Female BSPP
  • Some Ends Match
Technical Characteristics:
  • Compatible Fluids: Compressed air, lubricants, gases
  • Working Pressure: Vacuum to 300 bar
  • Working Temperature: -15°C to +80°C
Advantages:
  • Low operating torque, even at high pressure
  • Repositionable and exchangeable handles
  • Robust design resistant to high tightening torques
  • Fixing screws for through-bulkhead mounting
Regulations:
  • PED
  • RoHS
  • REACH
Component Materials:
  • Body: Dichromate-treated zinc-plated brass
  • Stem seal: PTFE
  • Seat seals: NBR
  • Lever: Zamak
  • Stem: Stainless Steel
  • Wear-compensation seal: NBR
  • Threaded Inserts: Treated steel
  • Reinforcement ring: Treated Steel
  • Ball: Polished Brass
Part Number Diameter Nominal (DN) C E H1 H2 H3 J K L L1 N N1 Kg
4402 07 13 7 mm 1/4" 12 mm 50 mm 13 mm 15 mm 30 mm 30 mm 58 mm 25 mm 15 mm 20 mm .402 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
