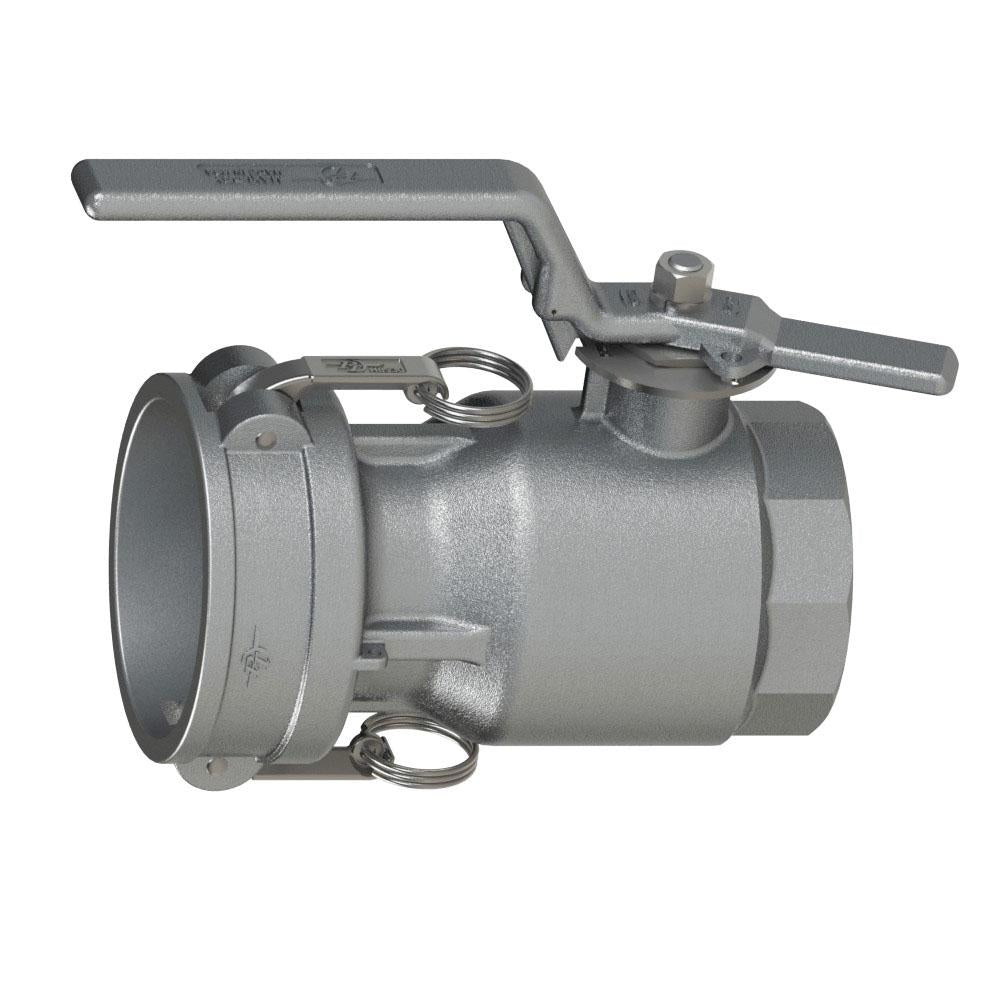

44001500E (MD15D) by PT-Coupling | MAXI-DRY® Dry Disconnect Coupler | Type MDD | 1-1/2" Coupler x 1-1/2" Female NPT | Stainless Steel | EPDM Seal

44001500E (MD15D) by PT-Coupling | MAXI-DRY® Dry Disconnect Coupler | Type MDD | 1-1/2" Coupler x 1-1/2" Female NPT | Stainless Steel | EPDM Seal

Sale price$1,018.94

PT Coupling
Petroleum Handling | MAXI-DRY® Dry Disconnect Coupler | Type MDD | Coupler x Female NPT

Made in the USA.
Buy More, Save More!
Quantity Price Each
5–14 $957.80
15–29 $866.10
30+ $764.21
Discounts applied in cart/checkout.

Product Data:

Series:
  • Petroleum Handling
Shape:

Straight

Material(s):
  • Stainless Steel
Overview:
  • PT Coupling's petroleum handling fittings are used in all phases of petroleum manufacturing, transportation and logistics. They serve important roles in fuel transportation, from refining applications to tank trucks, and much more. They are also suited to work with the emerging bio-fuel industry.
Features & Applications:
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Made in the USA
  Stainless Steel with
Part
Name		 Buna Seal
Item #		 Viton® Seal
Item #		 Teflon® Seal
Item #		 EPDM Seal
Item #		 Coupler
Size		 Female
NPT Thread
(H)		 A B C D E F G I Pressure
Rating
MD15D 44001500 44001500V 44001500T 44001500E 1-1/2" 1-1/2" 6.9" 1.5" 3.9" 6.1" 4.1" 2.5" 5.0" 2.0" 200 PSI
MD20D 44000200 44000200V 44000200T 44000200E 2" 2-1/2" 7.5" 2.0" 4.4" 6.1" 4.3" 2.5" 5.1" 2.5" 150 PSI
MD30D 44000300 44000300V 44000300T 44000300E 3" 3" 9.5" 2.5" 6.5" 9.0" 5.5" 4.0" 6.0" 4.0" 125 PSI
MD40D - 44000342V - - 4" 4" 9.5" 2.5" 6.5" 9.0" 5.5" 4.0" 6.2" 4.0" 125 PSI

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
