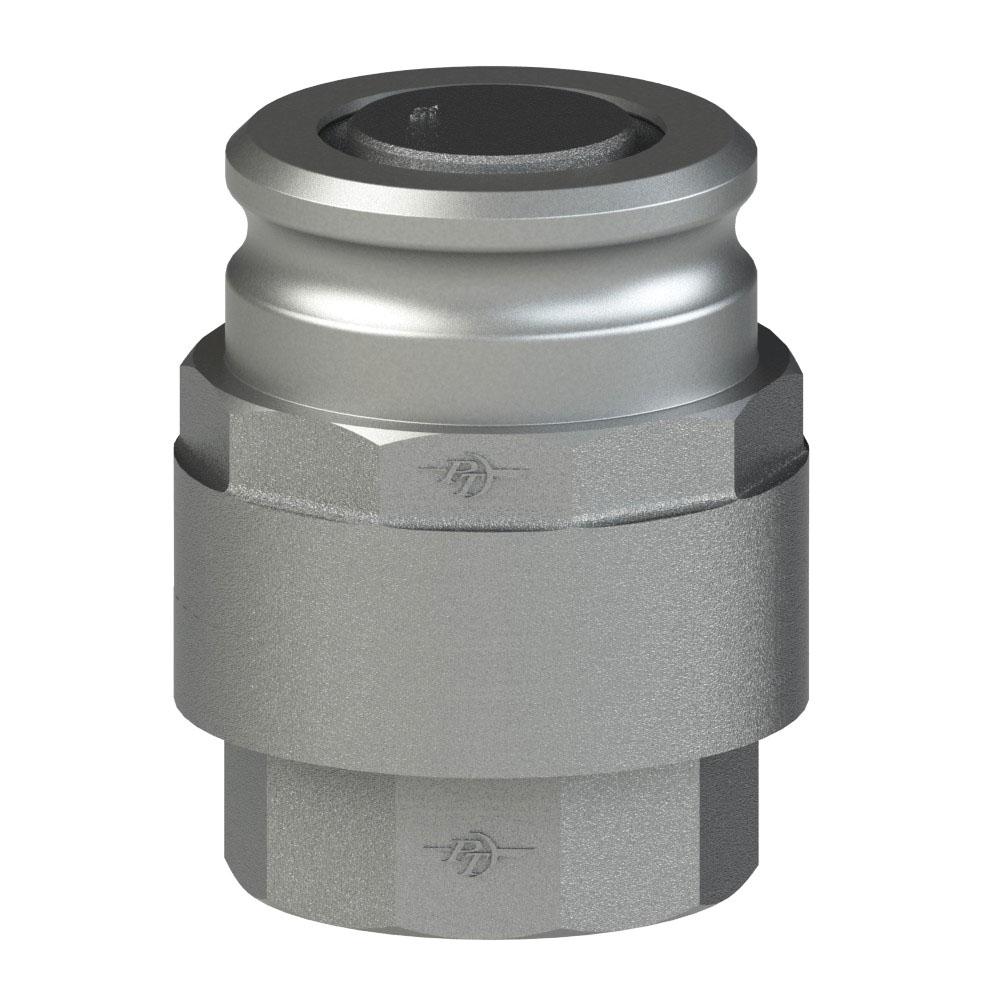

44000330 (MD30A) by PT-Coupling | MAXI-DRY® Dry Disconnect Adapter | 3"Adapter x 3" Female NPT | Stainless Steel | Buna Seal

44000330 (MD30A) by PT-Coupling | MAXI-DRY® Dry Disconnect Adapter | 3"Adapter x 3" Female NPT | Stainless Steel | Buna Seal

Sale price$1,038.55

PT Coupling
Petroleum Handling | MAXI-DRY® Dry Disconnect Adapter | Type MDA | Adapter x Female NPT

Made in the USA.
Buy More, Save More!
Quantity Price Each
5–14 $976.24
15–29 $882.77
30+ $778.91
Discounts applied in cart/checkout.

Product Data:

Series:
  • Petroleum Handling
Shape:

Straight

Material(s):
  • Stainless Steel
Overview:
  • PT Coupling's petroleum handling fittings are used in all phases of petroleum manufacturing, transportation and logistics. They serve important roles in fuel transportation, from refining applications to tank trucks, and much more. They are also suited to work with the emerging bio-fuel industry.
Features & Applications:
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Made in the USA
  Stainless Steel Adapter with
Part
Name		 Buna Seal
Item #		 Viton® Seal
Item #		 Teflon® Seal
Item #		 EPDM Seal
Item #		 Adapter
Size		 Female NPT
Thread
(Q)		 Overall
Length
(O)		 Width
(P)		 Coupler
Size
(R)		 Pressure
Rating
MD15A 44001530 44001530V 44001530T - 1-1/2" 1-1/2" 4.3" 3.2" 2" 200 PSI
MD20A 44000230 44000230V 44000230T 44000230E 2" 2" 5.2" 3.7" 2.5" 150 PSI
MD30A 44000330 44000330V 44000330T - 3" 3" 6.8" 5.6" 4" 125 PSI

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
