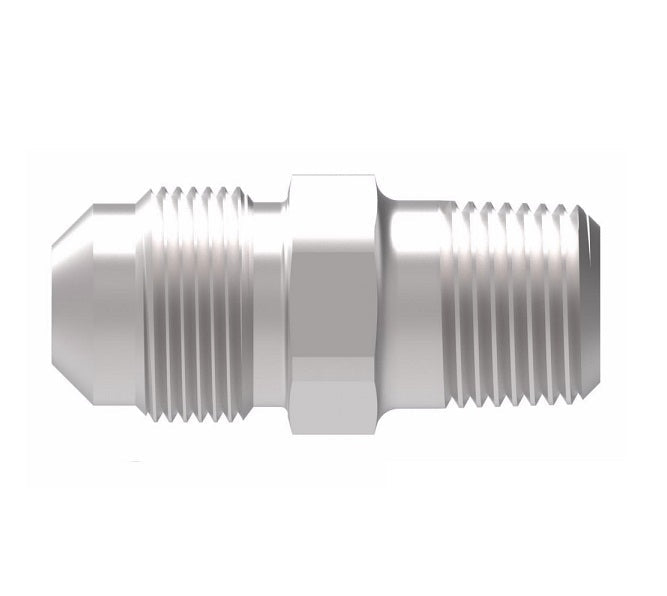

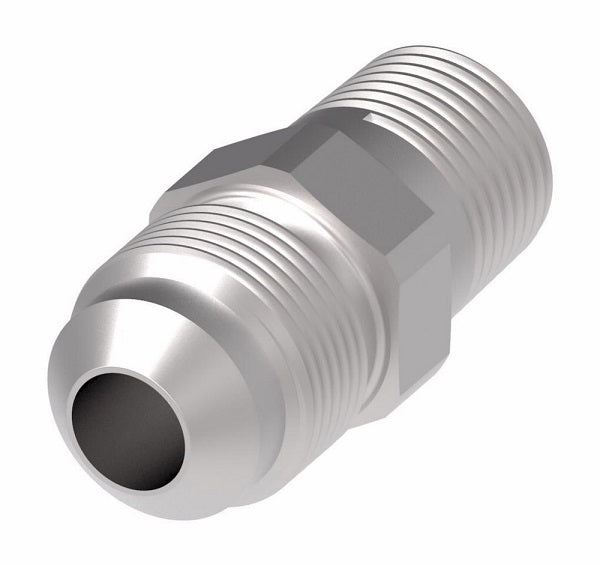

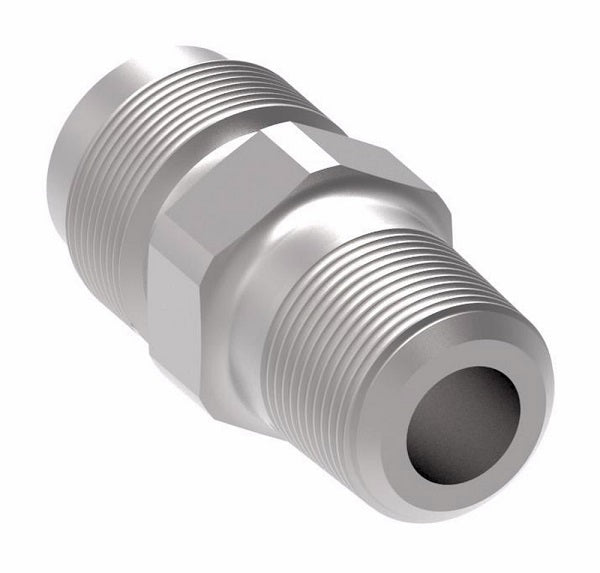

43X6 by Danfoss | Male Ball Check Connector | 1/4" Male NPTF x 3/8" Male SAE 45° Flare| Steel
43X6 by Danfoss | Male Ball Check Connector | 1/4" Male NPTF x 3/8" Male SAE 45° Flare| Steel
43X6 by Danfoss | Male Ball Check Connector | 1/4" Male NPTF x 3/8" Male SAE 45° Flare| Steel

43X6 by Danfoss | Male Ball Check Connector | 1/4" Male NPTF x 3/8" Male SAE 45° Flare| Steel

Sale price$17.03

Aeroquip® by Danfoss
Male Ball Check Connector
Male NPTF x Male SAE 45° Flare
Straight

Ball & Spring position may be reversed to change flow/check direction. Min pressure 3 PSI.
Buy More, Save More!
Quantity Price Each
10–39 $16.01
40–79 $14.48
80+ $12.77
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/4in Male NPTF
  • 3/8in Male SAE 45 Flare
Material(s):
  • Steel
Overview:
  • Danfoss brass tube fittings are precision machined to meet SAE standards and specifications.
Applications:
  • LP and natural gas, flammable liquids (special order), instrumentation, refrigeration, power steering, hydraulic and pneumatic systems.
Advantages:
  • Low cost and reusability.
  • Long or short nut.
  • Good vibration resistance - use long nut when greater vibration resistance is required.
Used With:
  • Copper, brass, aluminum and steel hydraulic tubing that can be flared.
Pressure:
  • Working pressure up to 2000 psi depending on tube size. Will withstand burst pressure of standard tubing - up to 5000 psi with bundyweld (double flared) and 3500 psi with copper tubing, depending on size.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures.
Conformance:
  • Listed by Underwriter's Laboratories (available on special order) for flammable liquids, refrigeration and gas.
  • Meets specifications and standards of ASA, ASME, SAE and MS (Military Standards).
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4"
Thread Size 5/16-24 3/8-24 7/16-20 1/2-20 5/8-18 11/16-18 3/4-16 7/8-14 1-1/16-14
Steel
Part Number 		Male NPTF Female NPTF Hex
C		 D L
43X4 1/4" 1/8" 7/16" 0.125" 1.06"
43X6 3/8" 1/4" 5/8" 0.219" 1.31"
