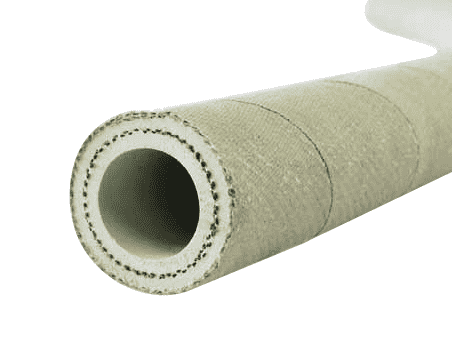

4380-0100-100 by Jason Industrial | 4380 Series | Non-Conductive Furnace Door Hose | 150 PSI | 1" ID | 1.38" OD | 100ft

4380-0100-100 by Jason Industrial | 4380 Series | Non-Conductive Furnace Door Hose | 150 PSI | 1" ID | 1.38" OD | 100ft

Sale price$1,406.09

Jason Industrial Inc. Hose - Water Hose - 4380 Non-Conductive Furnace Door Hose

Package Quantity: 100 FT

Buy More, Save More!
Quantity Price Each
4–7 $1,321.72
8–14 $1,265.48
15+ $1,124.87
Discounts applied in cart/checkout.

SPECIFICATIONS

Application: Conveys cooling water to furnace doors in steel mills, glass plants and similar operations. SAE Rating: N/A
Other Ratings: N/A Tube: EPDM, White, Smooth, Non-Conductive
Reinforcement: Two-ply Synthetic Fabric Cover: Glass Fiber Ply Impregnated with Heat and Flame-Resistant Synthetic Rubber
Temperature Range: -40 deg F (-40 deg. C) to +266 deg. F (+130 deg. C) Cover to +575 deg. F (+302 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: N/A
Other Features:
  • Superior heat resistant cover resists heat up to +575 deg. F.
  • Resists heat, open flame and splashes of white hot metal to +575 deg. F (+302 deg. C).
  • EPDM tube is non-conductive
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4380-0050-100 1/2" 12.70mm 0.91" 23.11mm 2 150 PSI 10.35 BAR N/A 0.20 lb./ft. 0.30 KG/m 5.00" 127.00mm 100ft
4380-0075-100 3/4" 19.05mm 1.19" 30.23mm 2 150 PSI 10.35 BAR N/A 0.30 lb./ft. 0.45 KG/m 7.50" 190.00mm 100ft
4380-0100-100 1" 25.40mm 1.38" 35.05mm 2 150 PSI 10.35 BAR N/A 0.50 lb./ft. 0.74 KG/m 10.00" 254.00mm 100ft
4380-0125-100 1-1/4" 31.75mm 1.75" 44.45mm 2 150 PSI 10.35 BAR N/A 0.90 lb./ft. 1.34 KG/m 12.60" 320.00mm 100ft
4380-0150-100 1-1/2" 38.10mm 2.00" 50.80mm 2 150 PSI 10.35 BAR N/A 1.00 lb./ft. 1.49 KG/m 15.00" 380.00mm 100ft
4380-0200-100 2" 50.80mm 2.53" 64.26mm 2 150 PSI 10.35 BAR N/A 1.10 lb./ft. 1.64 KG/m 20.00" 508.00mm 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Product Data:

Series:
  • 4380 Series
Color(s):
  • White/Off-White
Internal Diameter:
  • 1in

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
