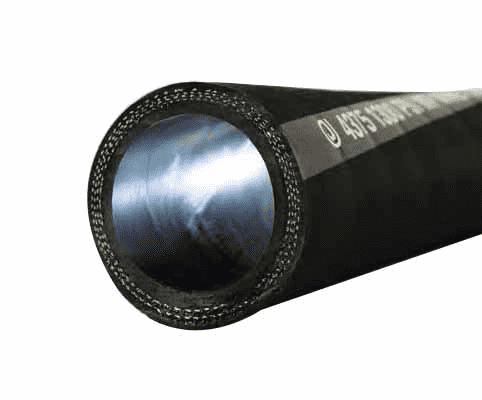

4375-0300-050 by Jason Industrial | 4375 Series | Concrete Placement Hose | 1300 PSI | 3" ID | 4.02" OD | Black | Elastomers | 50ft

4375-0300-050 by Jason Industrial | 4375 Series | Concrete Placement Hose | 1300 PSI | 3" ID | 4.02" OD | Black | Elastomers | 50ft

Sale price$1,895.36

Jason Industrial Inc. Hose - Material Handling Hose - 4375 Concrete Placement Hose - 1300 PSI - Black

Package Quantity: 50 FT

Buy More, Save More!
Quantity Price Each
4–7 $1,781.64
8–14 $1,705.82
15+ $1,516.29
Discounts applied in cart/checkout.

SPECIFICATIONS

Application: For very high pressure concrete placement applications SAE Rating: N/A
Other Ratings: N/A Tube: Blend of Synthetic and Natural Elastomers, Black, Smooth, Anti-static
Reinforcement: 2 or 4-spiral High Tensile Steel Wire Cover: Blend of Synthetic and Natural Elastomers, Black, Smooth, Cloth Impression, Anti-static
Temperature Range: -22 deg. F (-30 deg. C) to +185 deg. F (+85 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4375 1300 PSI WP WIRE CONCRETE PLACEMENT. Clear stripe with reversed lettering
Other Features:
  • Tube and cover compounds are anti-static
  • Tube is abrasion resistant
  • Cover is abrasion, ozone and weather resistant
  • Designed for high kink resistance and perfect flow
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4375-0200-050 2" 50.80mm 2.87" 73.00mm 2 1300 PSI 89.6 BAR N/A 1.95 lb./ft. 2.91 KG/m 16.10" 410.00mm 50ft
4375-0200-100 2" 50.80mm 2.87" 73.00mm 2 1300 PSI 89.6 BAR N/A 1.95 lb./ft. 2.91 KG/m 16.10" 410.00mm 100ft
4375-0300-050 3" 76.20mm 4.02" 102.00mm 4 1300 PSI 89.6 BAR N/A 3.63 lb./ft. 5.40 KG/m 24.00" 610.00mm 50ft
4375-0300-100 3" 76.20mm 4.02" 102.00mm 4 1300 PSI 89.6 BAR N/A 3.63 lb./ft. 5.40 KG/m 24.00" 610.00mm 100ft
4375-0400-050 4" 101.60mm 5.12" 130.00mm 4 1300 PSI 89.6 BAR N/A 5.31 lb./ft. 7.90 KG/m 32.30" 820.00mm 50ft
4375-0400-100 4" 101.60mm 5.12" 130.00mm 4 1300 PSI 89.6 BAR N/A 5.31 lb./ft. 7.90 KG/m 32.30" 820.00mm 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Product Data:

Series:
  • 4375 Series
Color(s):
  • Black
Internal Diameter:
  • 3in

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
