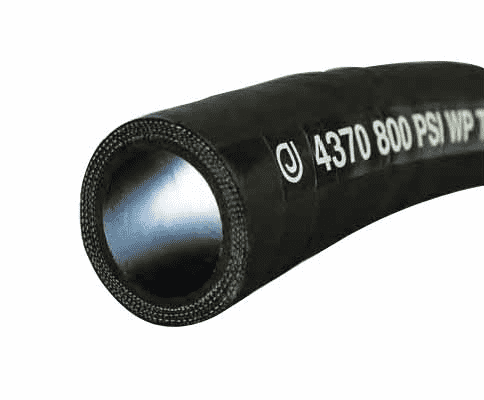

4370-0200-100 by Jason Industrial | 4370 Series | Concrete Placement Hose | 800 PSI | 2" ID | 2.68" OD | Black | Elastomers | 100ft

4370-0200-100 by Jason Industrial | 4370 Series | Concrete Placement Hose | 800 PSI | 2" ID | 2.68" OD | Black | Elastomers | 100ft

Sale price$1,836.19

Jason Industrial Inc. Hose - Material Handling Hose - 4370 Concrete Placement Hose - 800 PSI - Black

Package Quantity: 100 FT

Buy More, Save More!
Quantity Price Each
4–7 $1,726.02
8–14 $1,652.57
15+ $1,468.95
Discounts applied in cart/checkout.

SPECIFICATIONS

Application: High pressure concrete placement applications SAE Rating: N/A
Other Ratings: N/A Tube: Blend of Synthetic and Natural Elastomers, Black, Smooth and Anti-static
Reinforcement: Several Spirals of High Tensile Textile Cord Cover: Blend of Synthetic and Natural Elastomers, Black, Smooth with a Cloth Impression
Temperature Range: -22 deg. F (-30 deg. C) to +185 deg. F (+85 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4370 800 PSI WP TEXTILE CONCRETE PLACEMENT. Clear mylar longitudinal stripe.
Other Features:
  • Anti-static tube and cover
  • Cover is abrasion, weather and ozone resistant
  • Designed for high kink resistance and perfect flow
Part Number I.D. O.D. Reinforcement Spirals Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4370-0200-050 2" 50.80mm 2.68" 68.00mm 6 800 PSI 55.2 BAR N/A 1.41 lb./ft. 2.09 KG/m 13.75" 350.00mm 50ft
4370-0200-100 2" 50.80mm 2.68" 68.00mm 6 800 PSI 55.2 BAR N/A 1.41 lb./ft. 2.09 KG/m 13.75" 350.00mm 100ft
4370-0300-050 3" 76.20mm 3.78" 96.00mm 6 800 PSI 55.2 BAR N/A 2.40 lb./ft. 3.57 KG/m 16.10" 408.00mm 50ft
4370-0300-100 3" 76.20mm 3.78" 96.00mm 6 800 PSI 55.2 BAR N/A 2.40 lb./ft. 3.57 KG/m 16.10" 408.00mm 100ft
4370-0400-050 4" 101.60mm 4.96" 126.00mm 8 800 PSI 55.2 BAR N/A 4.23 lb./ft. 6.29 KG/m 26.00" 660.00mm 50ft
4370-0400-100 4" 101.60mm 4.96" 126.00mm 8 800 PSI 55.2 BAR N/A 4.23 lb./ft. 6.29 KG/m 26.00" 660.00mm 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Product Data:

Series:
  • 4370 Series
Color(s):
  • Black
Internal Diameter:
  • 2in

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
