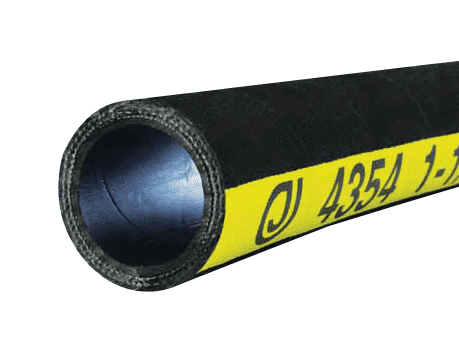

4354-0600-100 by Jason Industrial | 4354 Series | Rubber 4-Ply Water Discharge Hose | 150 PSI | 6" ID | 6.57" OD | Black | SBR | 100ft
Jason Industrial Inc

4354-0600-100 by Jason Industrial | 4354 Series | Rubber 4-Ply Water Discharge Hose | 150 PSI | 6" ID | 6.57" OD | Black | SBR | 100ft

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

SPECIFICATIONS

Application: For water discharge in construction, mines & quarries. Also for heavy duty equipment rental. SAE Rating: N/A
Other Ratings: N/A Tube: SBR, Black
Reinforcement: Four-ply Synthetic Fabric Cover: SBR, Black
Temperature Range: -25 deg F (-32 deg. C) to +185 deg. F (+85 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4354 I.D. WATER DISCHARGE WP PSI BAR. Yellow mylar longitudinal stripe
Other Features:
  • Cover compound makes it resistant to weather and ozone
  • Lays flat and rolls up for easy storage
  • Ideal for high working pressure water discharge applications
  • Excellent for tough, rugged operating conditions
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4354-0150-100 1-1/2" 38.10mm 2.00" 50.80mm 4 250 PSI 17.24 BAR N/A 0.83 lb./ft. 1.24 KG/m 15.00" 380.00mm 100ft
4354-0200-100 2" 50.80mm 2.56" 65.02mm 4 250 PSI 17.24 BAR N/A 1.11 lb./ft. 1.65 KG/m 20.00" 508.00mm 100ft
4354-0250-100 2-1/2" 36.50mm 3.07" 77.98mm 4 250 PSI 17.24 BAR N/A 1.24 lb./ft. 1.85 KG/m 25.00" 635.00mm 100ft
4354-0300-100 3" 76.20mm 3.58" 90.93mm 4 225 PSI 15.51 BAR N/A 1.50 lb./ft. 2.23 KG/m 30.00" 762.00mm 100ft
4354-0400-050 4" 101.60mm 4.61" 117.09mm 4 200 PSI 13.79 BAR N/A 1.85 lb./ft. 2.75 KG/m 40.00" 1016.00mm 50ft
4354-0400-100 4" 101.60mm 4.61" 117.09mm 4 200 PSI 13.79 BAR N/A 1.85 lb./ft. 2.75 KG/m 40.00" 1016.00mm 100ft
4354-0600-100 6" 152.40mm 6.57" 166.88mm 4 150 PSI 10.35 BAR N/A 3.90 lb./ft. 5.80 KG/m 60.00" 1524.00mm 100ft
4354-0800-050 8" 203.20mm 8.66" 219.96mm 4 125 PSI 8.62 BAR N/A 5.25 lb./ft. 7.81 KG/m 80.00" 2030.00mm 50ft
4354-1000-050 10" 254.00mm 10.66" 270.76mm 4 125 PSI 8.62 BAR N/A 6.29 lb./ft. 9.36 KG/m 100.00" 2540.00mm 50ft
4354-1200-050 12" 304.80mm 12.68" 322.07mm 4 125 PSI 8.62 BAR N/A 7.09 lb./ft. 10.54 KG/m 120.00" 3048.00mm 50ft
4354-1400-050 14" 355.60mm 14.61" 371.00mm 4 100 PSI 6.89 BAR N/A 7.62 lb./ft. 11.32 KG/m 120.00" 3048.00mm 50ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
