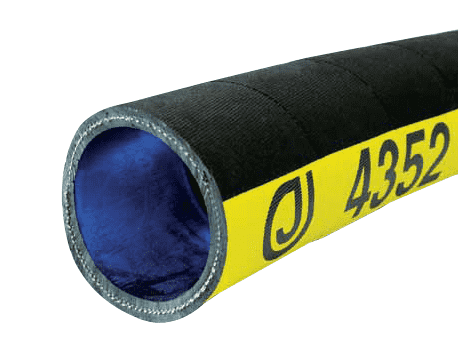

4352-0300-100 by Jason Industrial | 4352 Series | Rubber 2-Ply Water Discharge Hose | 150 PSI | 3" ID | 3.38" OD | Black | SBR | 100ft

4352-0300-100 by Jason Industrial | 4352 Series | Rubber 2-Ply Water Discharge Hose | 150 PSI | 3" ID | 3.38" OD | Black | SBR | 100ft

Sale price$983.68

Jason Industrial Inc. Hose - Water Hose - 4352 Rubber 2-Ply Water Discharge Hose

Package Quantity: 100 FT

Buy More, Save More!
Quantity Price Each
4–7 $924.66
8–14 $885.31
15+ $786.94
Discounts applied in cart/checkout.

SPECIFICATIONS

Application: For general construction, mines and water discharge and equipment rental. SAE Rating: N/A
Other Ratings: N/A Tube: SBR, Black
Reinforcement: Two-ply Synthetic Fabric Cover: SBR, Black
Temperature Range: -25 deg F (-32 deg. C) to +185 deg. F (+85 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4352 I.D. WATER DISCHARGE WP PSI BAR. Yellow mylar longitudinal stripe
Other Features:
  • Cover compound makes it resistant to weather and ozone
  • Lays flat and rolls up for easy storage
  • Ideal for standard working pressure
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4352-0150-100 1-1/2" 38.10mm 1.81" 45.97mm 2 150 PSI 10.35 BAR N/A 0.60 lb./ft. 0.89 KG/m 15.00" 380.00mm 100ft
4352-0200-100 2" 50.80mm 2.31" 58.67mm 2 150 PSI 10.35 BAR N/A 0.84 lb./ft. 1.25 KG/m 20.00" 508.00mm 100ft
4352-0250-100 2-1/2" 36.50mm 2.75" 69.85mm 2 150 PSI 10.35 BAR N/A 0.91 lb./ft. 1.35 KG/m 25.00" 635.00mm 100ft
4352-0300-100 3" 76.20mm 3.38" 85.85mm 2 150 PSI 10.35 BAR N/A 1.12 lb./ft. 1.67 KG/m 30.00" 762.00mm 100ft
4352-0400-100 4" 101.60mm 4.37" 111.00mm 2 150 PSI 10.35 BAR N/A 1.25 lb./ft. 1.86 KG/m 40.00" 1016.00mm 100ft
4352-0500-100 5" 127.00mm 5.51" 139.95mm 2 150 PSI 10.35 BAR N/A 2.29 lb./ft. 3.41 KG/m 50.00" 1270.00mm 100ft
4352-0600-050 6" 152.40mm 6.50" 165.10mm 2 150 PSI 10.35 BAR N/A 3.45 lb./ft. 5.13 KG/m 60.00" 1524.00mm 50ft
4352-0600-100 6" 152.40mm 6.50" 165.10mm 2 150 PSI 10.35 BAR N/A 3.45 lb./ft. 5.13 KG/m 60.00" 1524.00mm 100ft
4352-0800-050 8" 203.20mm 8.50" 215.90mm 2 100 PSI 6.89 BAR N/A 4.30 lb./ft. 6.40 KG/m 80.00" 2030.00mm 50ft
4352-0800-100 8" 203.20mm 8.50" 215.90mm 2 100 PSI 6.89 BAR N/A 4.30 lb./ft. 6.40 KG/m 80.00" 2030.00mm 100ft
4352-1000-050 10" 254.00mm 10.50" 266.70mm 2 100 PSI 6.89 BAR N/A 5.40 lb./ft. 8.04 KG/m 100.00" 2450.00mm 50ft
4352-1200-050 12" 304.80mm 12.50" 317.50mm 2 100 PSI 6.89 BAR N/A 6.75 lb./ft. 10.04 KG/m 120.00" 3058.00mm 50ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Product Data:

Series:
  • 4352 Series
Color(s):
  • Black
Internal Diameter:
  • 3in

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
