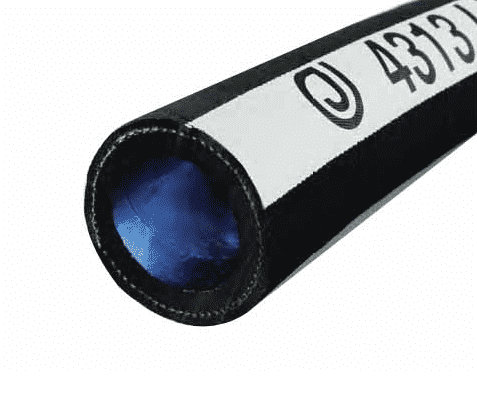

4313-0125-200 by Jason Industrial | 4313 Series | Lightweight Sandblast Hose | 150 PSI | 1-1/4" ID | 1.88" OD | Black | NR/BR | 200ft

4313-0125-200 by Jason Industrial | 4313 Series | Lightweight Sandblast Hose | 150 PSI | 1-1/4" ID | 1.88" OD | Black | NR/BR | 200ft

Sale price$1,529.70

Jason Industrial Inc. Hose - Material Handling Hose - 4313 Lightweight Sandblast Hose - Black

Package Quantity: 200 FT

Buy More, Save More!
Quantity Price Each
4–7 $1,437.92
8–14 $1,376.73
15+ $1,223.76
Discounts applied in cart/checkout.

SPECIFICATIONS

Application: For conveyance of highly abrasive materials in sandblasting/cleaning operations SAE Rating: N/A
Other Ratings: N/A Tube: SBR/NR Blend, Static Dissipating
Reinforcement: Two-ply Synthetic Fabric Cover: SBR/NR Blend
Temperature Range: -25 deg. F (-32 deg. C) to +185 deg. F (+85 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4313 LW SANDBLAST 1-7/8" O.D. WP 150 PSI 10.35 BAR. White longitudinal mylar stripe
Other Features:
  • Tube compounds are static-dissipating
  • Highly abrasion resistant tube that will handle any blast grit
  • Cover is abrasion and weather resistant
  • Lighter weight than standard sandblast hose
  • Maintains the high quality features
  • Utilizes couplings or nozzle holders made to fit 1-7/8" O.D. hose
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4313-0125-050 1-1/4" 31.75mm 1.88" 47.63mm 2 150 PSI 10.35 BAR N/A 0.83 lb./ft. 1.24 KG/m 10.00" 254.00mm 50ft
4313-0125-100 1-1/4" 31.75mm 1.88" 47.63mm 2 150 PSI 10.35 BAR N/A 0.83 lb./ft. 1.24 KG/m 10.00" 254.00mm 100ft
4313-0125-200 1-1/4" 31.75mm 1.88" 47.63mm 2 150 PSI 10.35 BAR N/A 0.83 lb./ft. 1.24 KG/m 10.00" 254.00mm 200ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Product Data:

Series:
  • 4313 Series
Color(s):
  • Black
Internal Diameter:
  • 1.25in

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
