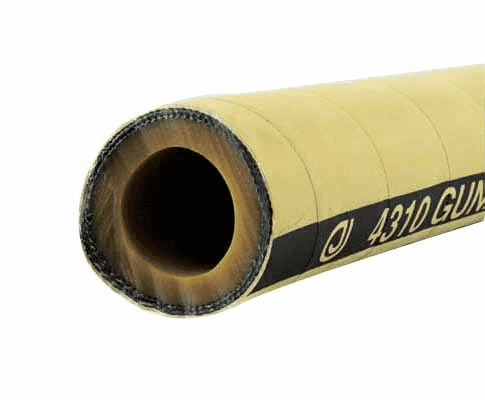

4310-0163-050 by Jason Industrial | 4310 Series | Gunite Hose | 150 PSI | 1-5/8" ID | 2.52" OD | Tan | Pure Gum Rubber | 50ft

4310-0163-050 by Jason Industrial | 4310 Series | Gunite Hose | 150 PSI | 1-5/8" ID | 2.52" OD | Tan | Pure Gum Rubber | 50ft

Sale price$836.55

Jason Industrial Inc. Hose - Material Handling Hose - 4310 Gunite Hose - Tan

Package Quantity: 50 FT

Buy More, Save More!
Quantity Price Each
5–14 $786.36
15–29 $711.07
30+ $669.24
Discounts applied in cart/checkout.

SPECIFICATIONS

Application: For conveyance of sand and cement to the mixing gun SAE Rating: N/A
Other Ratings: N/A Tube: 1/4" Thick, Pure Gum Rubber, Tan Color
Reinforcement: Two-ply Synthetic Fabric with a Static Wire Cover: EPDM, Pin-pricked, Tan
Temperature Range: -40 deg. F (-40 deg. C) to +185 deg. F (+85 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4310 GUNITE 150 PSI 10.35 BAR.
Other Features:
  • 1/4" gum tube has superior abrasion resistance
  • Weather and abrasion resistant cover
  • Cover compound is non-marking, allows for work around buildings and pool tiles
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4310-0150-050 1-1/2" 38.10mm 2.38" 60.33mm 2 150 PSI 10.35 BAR N/A 1.10 lb./ft. 1.64 KG/m 15.00" 380.00mm 50ft
4310-0163-050 1-5/8" 41.28mm 2.52" 64.00mm 2 150 PSI 10.35 BAR N/A 1.40 lb./ft. 2.09 KG/m 16.50" 420.00mm 50ft
4310-0200-050 2" 50.80mm 2.88" 72.90mm 2 150 PSI 10.35 BAR N/A 1.65 lb./ft. 2.46 KG/m 20.00" 508.00mm 50ft
4310-0250-050 2-1/2" 63.50mm 3.88" 98.30mm 2 150 PSI 10.35 BAR N/A 2.30 lb./ft. 3.42 KG/m 25.00" 635.00mm 50ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Product Data:

Series:
  • 4310 Series
Color(s):
  • Tan
Internal Diameter:
  • 1.625in

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
