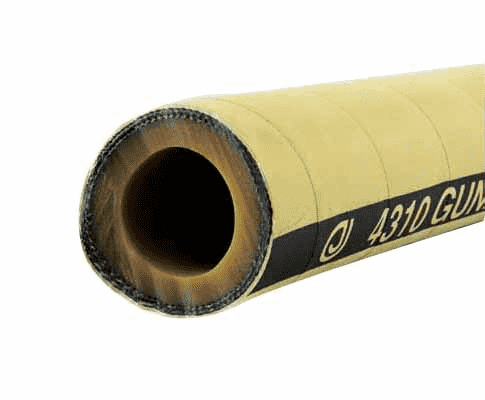

4310-0150-050 by Jason Industrial | 4310 Series | Gunite Hose | 150 PSI | 1-1/2" ID | 2.38" OD | Tan | Pure Gum Rubber | 50ft

4310-0150-050 by Jason Industrial | 4310 Series | Gunite Hose | 150 PSI | 1-1/2" ID | 2.38" OD | Tan | Pure Gum Rubber | 50ft

Sale price$797.72

Jason Industrial Inc. Hose - Material Handling Hose - 4310 Gunite Hose - Tan

Package Quantity: 50 FT

Buy More, Save More!
Quantity Price Each
5–14 $749.86
15–29 $678.06
30+ $598.29
Discounts applied in cart/checkout.

Product Data:

Series:
  • 4310 Series
Color(s):
  • Tan
Internal Diameter:
  • 1.50in

SPECIFICATIONS

Application: For conveyance of sand and cement to the mixing gun SAE Rating: N/A
Other Ratings: N/A Tube: 1/4" Thick, Pure Gum Rubber, Tan Color
Reinforcement: Two-ply Synthetic Fabric with a Static Wire Cover: EPDM, Pin-pricked, Tan
Temperature Range: -40 deg. F (-40 deg. C) to +185 deg. F (+85 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4310 GUNITE 150 PSI 10.35 BAR.
Other Features:
  • 1/4" gum tube has superior abrasion resistance
  • Weather and abrasion resistant cover
  • Cover compound is non-marking, allows for work around buildings and pool tiles
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4310-0150-050 1-1/2" 38.10mm 2.38" 60.33mm 2 150 PSI 10.35 BAR N/A 1.10 lb./ft. 1.64 KG/m 15.00" 380.00mm 50ft
4310-0163-050 1-5/8" 41.28mm 2.52" 64.00mm 2 150 PSI 10.35 BAR N/A 1.40 lb./ft. 2.09 KG/m 16.50" 420.00mm 50ft
4310-0200-050 2" 50.80mm 2.88" 72.90mm 2 150 PSI 10.35 BAR N/A 1.65 lb./ft. 2.46 KG/m 20.00" 508.00mm 50ft
4310-0250-050 2-1/2" 63.50mm 3.88" 98.30mm 2 150 PSI 10.35 BAR N/A 2.30 lb./ft. 3.42 KG/m 25.00" 635.00mm 50ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
