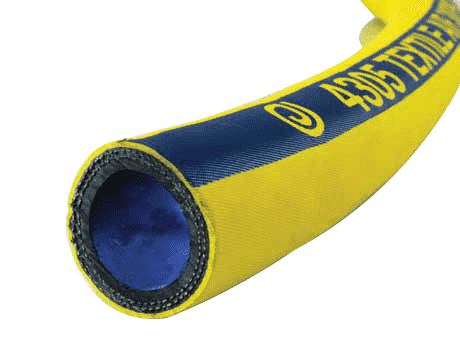

4305-0300-100 by Jason Industrial | 4305 Series | Textile Reinforced Air Hose | 300 PSI | 3" ID | 3.70" OD | Bright Yellow | Nitrile | 100ft

4305-0300-100 by Jason Industrial | 4305 Series | Textile Reinforced Air Hose | 300 PSI | 3" ID | 3.70" OD | Bright Yellow | Nitrile | 100ft

Sale price$1,550.88

Jason Industrial Inc. Hose - Air Hose - 4305 Textile Reinforced Air Hose 300 PSI - Bright Yellow

Package Quantity: 100 FT

Buy More, Save More!
Quantity Price Each
4–7 $1,457.83
8–14 $1,395.79
15+ $1,240.70
Discounts applied in cart/checkout.

SPECIFICATIONS

Application: For rugged air line service in mining, quarries, construction, sandblasting, industrial air placement and equipment rental. SAE Rating: N/A
Other Ratings: N/A Tube: Nitrile Blend, Smooth and Black
Reinforcement: Two-Ply Synthetic Fabric Cover: Nitrile/SBR, Fabric Impression, Yellow, Pin-Pricked.
Temperature Range: -25 deg. F (-32 deg. C) to +200 deg. F (+93 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4305 TEXTILE AIR WP (PSI)(BAR). Blue mylar longitudinal stripe
Other Features:
  • Oil mist resistant tube
  • Bright yellow non-marking cover
  • Weather and ozone resistant
  • Excellent abrasion resistance
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR lb./ft. KG/m in. mm ft
Uncoupled
4305-0050-100 1/2" 12.70mm 0.91" 23.11mm 2 300 PSI 24.13 BAR N/A 0.32 lb./ft. 0.48 KG/m 6.00" 152.40mm 100ft
4305-0075-100 3/4" 19.05mm 1.18" 29.97mm 2 300 PSI 24.13 BAR N/A 0.40 lb./ft. 0.60 KG/m 7.50" 190.00mm 100ft
4305-0100-050 1" 25.40mm 1.46" 37.08mm 2 300 PSI 24.13 BAR N/A 0.54 lb./ft. 0.80 KG/m 10.00" 254.00mm 50ft
4305-0100-100 1" 25.40mm 1.46" 37.08mm 2 300 PSI 24.13 BAR N/A 0.54 lb./ft. 0.80 KG/m 10.00" 254.00mm 100ft
4305-0125-100 1-1/4" 31.75mm 1.81" 45.97mm 2 300 PSI 24.13 BAR N/A 0.81 lb./ft. 1.21 KG/m 12.50" 320.00mm 100ft
4305-0150-100 1-1/2" 38.10mm 2.05" 52.07mm 2 300 PSI 24.13 BAR N/A 0.92 lb./ft. 1.37 KG/m 15.00" 381.00mm 100ft
4305-0200-100 2" 50.80mm 2.64" 67.06mm 2 300 PSI 24.13 BAR N/A 1.37 lb./ft. 2.04 KG/m 20.00" 508.00mm 100ft
4305-0250-100 2-1/2" 63.50mm 3.15" 80.01mm 2 300 PSI 24.13 BAR N/A 1.69 lb./ft. 2.51 KG/m 25.00" 635.00mm 100ft
4305-0300-050 3" 76.20mm 3.70" 93.98mm 2 300 PSI 24.13 BAR N/A 2.16 lb./ft. 3.21 KG/m 30.00" 762.00mm 50ft
4305-0300-100 3" 76.20mm 3.70" 93.98mm 2 300 PSI 24.13 BAR N/A 2.16 lb./ft. 3.21 KG/m 30.00" 762.00mm 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Product Data:

Series:
  • 4305 Series
Color(s):
  • Yellow
Internal Diameter:
  • 3in

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
