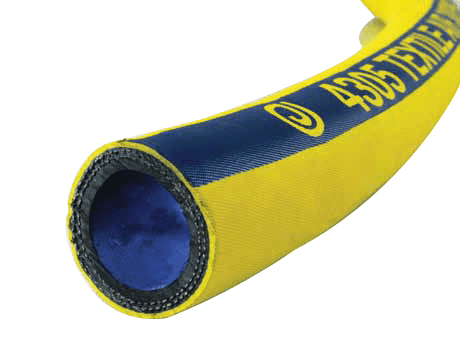

4305-0125-100 by Jason Industrial | 4305 Series | Textile Reinforced Air Hose | 300 PSI | 1-1/4" ID | 1.81" OD | Bright Yellow | Nitrile | 100ft

4305-0125-100 by Jason Industrial | 4305 Series | Textile Reinforced Air Hose | 300 PSI | 1-1/4" ID | 1.81" OD | Bright Yellow | Nitrile | 100ft

Sale price$624.46

Jason Industrial Inc. Hose - Air Hose - 4305 Textile Reinforced Air Hose 300 PSI - Bright Yellow

Package Quantity: 100 FT

Buy More, Save More!
Quantity Price Each
5–14 $586.99
15–29 $530.79
30+ $468.35
Discounts applied in cart/checkout.

Product Data:

Series:
  • 4305 Series
Color(s):
  • Yellow
Internal Diameter:
  • 1.25in

SPECIFICATIONS

Application: For rugged air line service in mining, quarries, construction, sandblasting, industrial air placement and equipment rental. SAE Rating: N/A
Other Ratings: N/A Tube: Nitrile Blend, Smooth and Black
Reinforcement: Two-Ply Synthetic Fabric Cover: Nitrile/SBR, Fabric Impression, Yellow, Pin-Pricked.
Temperature Range: -25 deg. F (-32 deg. C) to +200 deg. F (+93 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4305 TEXTILE AIR WP (PSI)(BAR). Blue mylar longitudinal stripe
Other Features:
  • Oil mist resistant tube
  • Bright yellow non-marking cover
  • Weather and ozone resistant
  • Excellent abrasion resistance
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR lb./ft. KG/m in. mm ft
Uncoupled
4305-0050-100 1/2" 12.70mm 0.91" 23.11mm 2 300 PSI 24.13 BAR N/A 0.32 lb./ft. 0.48 KG/m 6.00" 152.40mm 100ft
4305-0075-100 3/4" 19.05mm 1.18" 29.97mm 2 300 PSI 24.13 BAR N/A 0.40 lb./ft. 0.60 KG/m 7.50" 190.00mm 100ft
4305-0100-050 1" 25.40mm 1.46" 37.08mm 2 300 PSI 24.13 BAR N/A 0.54 lb./ft. 0.80 KG/m 10.00" 254.00mm 50ft
4305-0100-100 1" 25.40mm 1.46" 37.08mm 2 300 PSI 24.13 BAR N/A 0.54 lb./ft. 0.80 KG/m 10.00" 254.00mm 100ft
4305-0125-100 1-1/4" 31.75mm 1.81" 45.97mm 2 300 PSI 24.13 BAR N/A 0.81 lb./ft. 1.21 KG/m 12.50" 320.00mm 100ft
4305-0150-100 1-1/2" 38.10mm 2.05" 52.07mm 2 300 PSI 24.13 BAR N/A 0.92 lb./ft. 1.37 KG/m 15.00" 381.00mm 100ft
4305-0200-100 2" 50.80mm 2.64" 67.06mm 2 300 PSI 24.13 BAR N/A 1.37 lb./ft. 2.04 KG/m 20.00" 508.00mm 100ft
4305-0250-100 2-1/2" 63.50mm 3.15" 80.01mm 2 300 PSI 24.13 BAR N/A 1.69 lb./ft. 2.51 KG/m 25.00" 635.00mm 100ft
4305-0300-050 3" 76.20mm 3.70" 93.98mm 2 300 PSI 24.13 BAR N/A 2.16 lb./ft. 3.21 KG/m 30.00" 762.00mm 50ft
4305-0300-100 3" 76.20mm 3.70" 93.98mm 2 300 PSI 24.13 BAR N/A 2.16 lb./ft. 3.21 KG/m 30.00" 762.00mm 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
