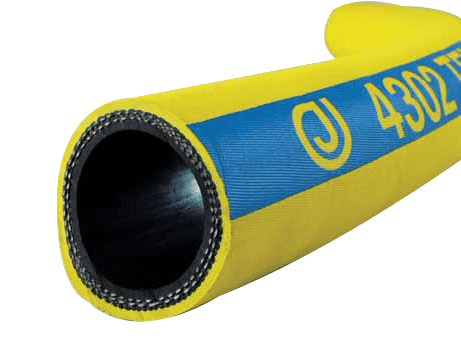

4302-0050-050 by Jason Industrial | 4302 Series | Textile Reinforced Air Hose | 400 PSI | 1/2" ID | 0.91" OD | Bright Yellow | Nitrile | 50ft

4302-0050-050 by Jason Industrial | 4302 Series | Textile Reinforced Air Hose | 400 PSI | 1/2" ID | 0.91" OD | Bright Yellow | Nitrile | 50ft

Sale price$169.95

Jason Industrial Inc. Hose - Air Hose - 4302 Textile Reinforced Air Hose 400 PSI - Bright Yellow

Package Quantity: 50 FT

Buy More, Save More!
Quantity Price Each
5–19 $159.75
20–59 $144.46
60+ $127.46
Discounts applied in cart/checkout.

Product Data:

Series:
  • 4302 Series
Color(s):
  • Yellow
Internal Diameter:
  • 0.50in

SPECIFICATIONS

Application: For tough applications in mines and quarries. SAE Rating: N/A
Other Ratings: N/A Tube: Nitrile Blend, Smooth and Black
Reinforcement: Two-Ply Synthetic Fabric Cover: SBR, Fabric Impression, Yellow, Pin-Pricked.
Temperature Range: -25 deg. F (-32 deg. C) to +200 deg. F (+93 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4302 TEXTILE AIR WP (PSI)(BAR). Blue mylar longitudinal stripe.
Other Features:
  • Oil mist resistant tube
  • Bright yellow non-marking cover
  • Medium high working pressure
  • Weather and ozone resistant
  • Excellent abrasion resistance
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR lb./ft. KG/m in. mm ft
Uncoupled
4302-0050-050 1/2" 12.70mm 0.91" 23.11mm 2 400 PSI 27.58 BAR N/A 0.32 lb./ft. 0.48 KG/m 6.00" 152.40mm 50ft
4302-0075-050 3/4" 19.05mm 1.18" 29.97mm 2 400 PSI 27.58 BAR N/A 0.40 lb./ft. 0.60 KG/m 7.50" 190.00mm 50ft
4302-0100-050 1" 25.40mm 1.46" 37.08mm 2 400 PSI 27.58 BAR N/A 0.54 lb./ft. 0.80 KG/m 10.00" 254.00mm 50ft
4302-0150-050 1-1/2" 38.10mm 2.05" 52.07mm 2 400 PSI 27.58 BAR N/A 0.92 lb./ft. 1.37 KG/m 15.00" 280.00mm 50ft
4302-0200-050 2" 50.80mm 2.64" 67.06mm 2 400 PSI 27.58 BAR N/A 1.37 lb./ft. 2.04 KG/m 20.00" 508.00mm 50ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
