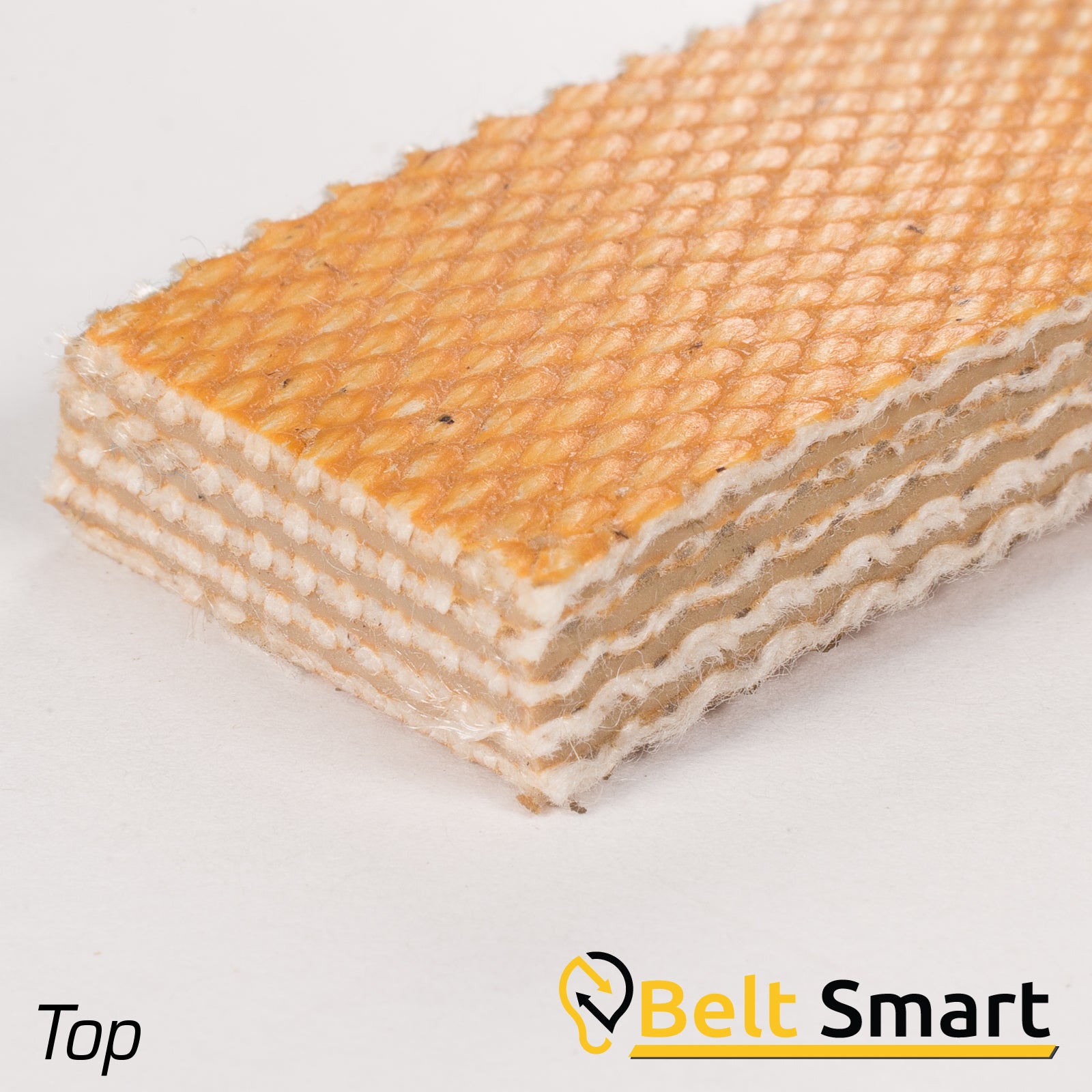

BS043 - #43 Beltservice 5 Ply 35 oz. Tan FS x FS Silver Hard Duck Conveyor Belt

$10.00 IS FOR A PRODUCT SAMPLE
-or-
REQUEST A FREE BELT ASSEMBLY QUOTE

Use [Add to cart] to purchase a sample piece of belting which will put a $10 credit on your account if you decide to order your belt from BeltSmart. Limit 3 per customer or $30.00 total. Product samples are shipped priority mail.

Use [Request a Laced or Endless Belt Quote] to have our customer service work up a quote with mechanical lace, open-ended, or vulcanized endless. Our team of belt specialists are on hand during regular business hours to answer questions and help with any questions you may have.

If you are unsure what your belting is and would like us to identify it, please send us a sample of the belting to the address given in our [about us] page. Include name, company, phone, address and dimensions to 1/8" for width and length.

Applications:
Severe / Rugged Conditions Elevator Applications
Features:
Constructed of rugged silver hard duck fabric plies with heavy skim coats between and friction surface both sides. These belts are formulated for severe conditions and rugged service. Excellent fastener-holding ability. Can be spliced endless or metal laced. Very good for elevator applications.

	4 Ply 35 oz. Tan FS x FS Silver Hard Duck Pt No.: 42	5 Ply 35 oz. Tan FS x FS Silver Hard Duck Pt No.: 43	6 Ply 35 oz. Tan FS x FS Silver Hard Duck Pt No.: 44	8 Ply 35 oz. Tan FS x FS Silver Hard Duck Pt No.: 45
Thickness	15/64"	5/16"	3/8"	1/2"
Covers	FS x FS
Carcass	35 oz. Hard Silver Duck
Working Tension per Inch Width	140 lbs.	175 lbs.	210 lbs.	280 lbs.
Approx. Weight Lbs. Per Inch Width	.111 lbs.	.139 lbs.	.166 lbs.	.215 lbs.
Min. Pulley Diameter	6"	8"	10"	16"
Temperature Range	-40 deg. F / 250 deg. F
Clipper Lace	#4	#5	#6	NR
Alligator Lace	#27	#35	#45	#65
Flexco Hinged	R5	#375 or R5	#550 or R5
Alligator Staple	#187	#310	N/A

FS = Friction Surface
NR = Not Recommended>
