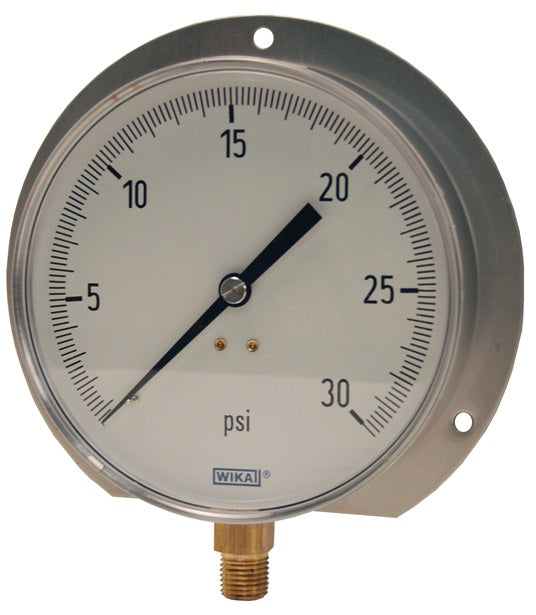

4277768-0001 by Dixon Valve | Contractor Pressure Gauge | Lower Mount | 4-1/2" Face | 1/4" Lower Mount | 0-30 PSI Range | Stainless Steel

4277768-0001 by Dixon Valve | Contractor Pressure Gauge | Lower Mount | 4-1/2" Face | 1/4" Lower Mount | 0-30 PSI Range | Stainless Steel

Sale price$75.52

Dixon Valve
Dixon® Gauge | Contractor Pressure Gauge | Lower Mount

Designed for long, reliable service under rugged conditions.

Typical applications include those on pumps, hydraulic and pneumatic systems, compressors, machine tools and many other installations where it is necessary to have a gauge with a non-corrosive movement.
Buy More, Save More!
Quantity Price Each
5–19 $70.99
20–59 $64.19
60+ $56.64
Discounts applied in cart/checkout.

Product Data:

Series:
  • 42777 Series
Features:
  • Accuracy class: ± 1% of span.
Materials:
  • Wetted parts: copper alloy
  • Window: acrylic, snap in
  • Dial: aluminum, white
  • Pointer: aluminum, black, adjustable
  • Mounting flanged/bracket, rear flange: stainless steel
  • Case: stainless steel
Specifications:
  • Temperature range: -40°F to 250°F (-40°C to 120°C)
4-1/2" Face
1/4" Lower Mount
Part Number		 PSI Range
4277750-0001 0-15 PSI
4277768-0001 0-30 PSI
4277776-0003 0-60 PSI

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
