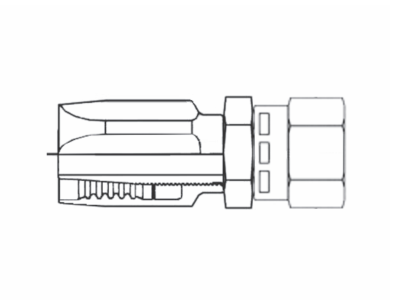

424R-1 by Couplamatic | R5 Reusable Coupling | 1/4" Hose ID x 7/16x20 Thread Size | for 100R1 Thin Hose JIC 37° Female Swivel | Straight | Trivalent Zinc Plating
Buy more, save moreDiscounts applied in cart/checkout.
Reusable — Field Attachable
824R Reusable Coupling — JIC 37°, Female Swivel, Straight
824R is the JIC 37°, Female Swivel, Straight configuration of the Reusable Coupling, terminating 100R1 and 100R2 thin cover hose, or 100R5 textile cover hose, depending on the series.
1
What are the main product features?
- Non-Mandrel and No Skive
- Trivalent Zinc Plating
- 1. Screw socket onto hose (left hand thread) until hose bottoms. Back out 1/4 turn.
- 2. Lubricate insert threads and I.D. of hose. Screw insert into socket until insert hex touches socket.
- Field attachable — assembles with hand tools; no crimp machine needed.
- Reusable — the coupling can be removed and reinstalled on a new length of hose.
- Ideal for field repair — keeps equipment running where a crimper is not available.
2
Which sizes are available?
| Part Number | Hose ID | Thread Size | Tube OD | Hose Type |
|---|---|---|---|---|
| 424R-1 | 1/4" | 7/16x20 | 1/4" | 100R1 Thin |
| 424R-2 | 1/4" | 7/16x20 | 1/4" | 100R2 Thin |
| 627R-1 | 3/8" | 9/16x18 | 3/8" | 100R1 Thin |
| 627R-2 | 3/8" | 9/16x18 | 3/8" | 100R2 Thin |
| 630R-2 | 3/8" | 3/4x16 | 1/2" | 100R2 Thin |
| 824R-1 | 1/2" | 3/4x16 | 1/2" | 100R1 Thin |
| 824R-2 | 1/2" | 3/4x16 | 1/2" | 100R2 Thin |
| 827R-2 | 1/2" | 7/8x14 | 5/8" | 100R2 Thin |
| 1221R-2 | 3/4" | 1-1/16x12 | 3/4" | 100R2 Thin |
Additional Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
