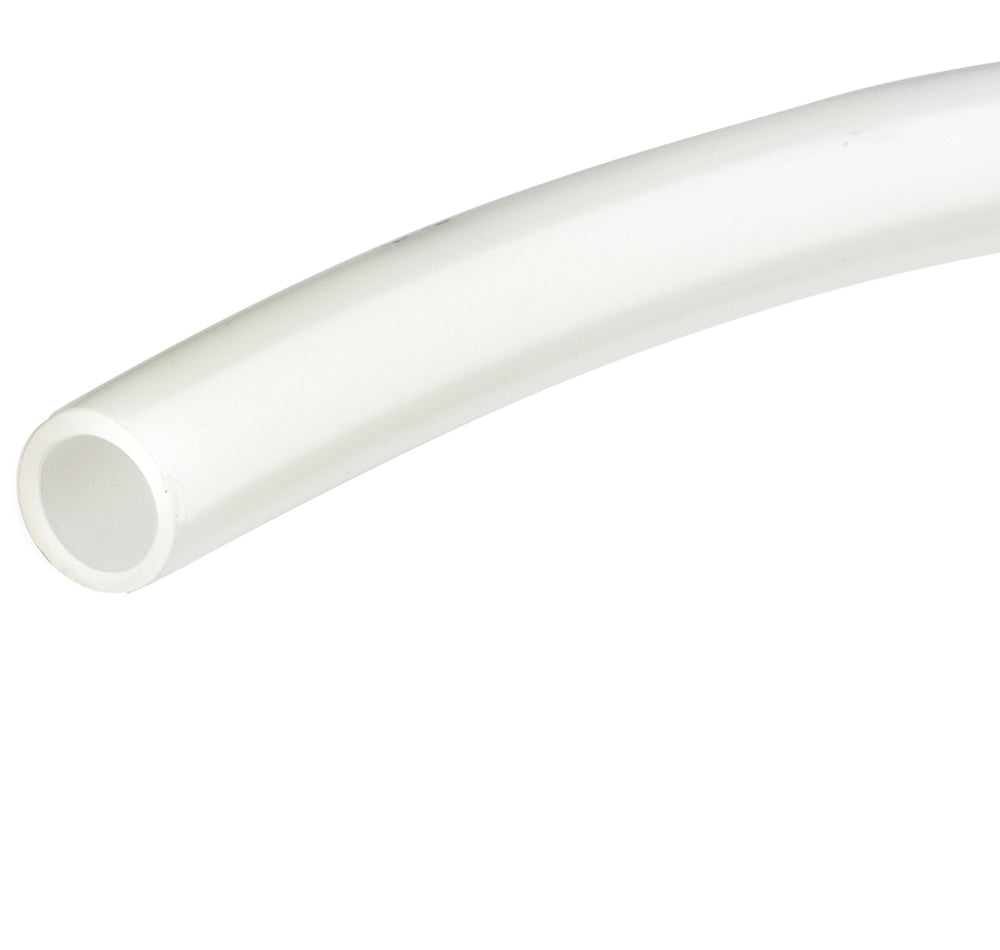

420N-0435X100 Kuri-Tec by Kuriyama | 420N Series | Nylon 12 Tubing | 1/4" OD | .180" ID | 0.035" Wall Thickness | 100ft Length

Minimum Order Quantity: 5 Units

$68.30

Kuri Tec® by Kuriyama
420N Series | Nylon 12 Tubing

Nylon construction provides high strength in a lightweight product. Compatible with many industrial chemicals and solvents.

Made in North America.

Package Quantity: 100 Foot

Quantity:

Discounts applied in cart/checkout.

Brand:

Series:

Color(s):

Other Features:
Applications:	Chemical transfer. Lubrication and coolant transfer. Paint supply lines. Pneumatic and instrumentation lines. Pneumatic tools.
Tube:	Nylon 12 - natural color. In compliance with RoHS criteria.
Cover:	-	Service Temperature Range:	-60°F (-51°C) to +200°F (+93°C)
Specifications:	Phthalate Free RoHS
Strong and Lightweight - Nylon construction provides high strength in a lightweight product. Excellent Chemical Resistance - Compatible with many industrial chemicals and solvents. High Heat Resistance - Heat resistant up to +200°F. Low Moisture Absorption Rate - Helps eliminate cross contamination of the transferred materials, and instances of swelling which can shorten tubing life. Resistant to Environmental Stress Cracking (ESC) - Highly resistant to the surface cracking caused by simultaneous exposure to stress and liquids. Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.

Part Number 100ft	Part Number 500ft	Nominal OD		Nominal ID		Nominal Wall		Working Pressure (PSI)
Part Number 100ft	Part Number 500ft	(in)	(mm)	(in)	(mm)	(in)	(mm)	at 70°F (20°C)
420N-0435X100	420N-0435X500	1/4"	6.4mm	0.180"	4.6mm	0.035"	0.9mm	290 PSI
420N-0650X100	420N-0650X500	3/8"	9.5mm	0.275"	7.0mm	0.050"	1.3mm	250 PSI
420N-0862X100	420N-0862X500	1/2"	12.7mm	0.375"	9.5mm	0.062"	1.6mm	240 PSI
