4203 20 28 20 by Parker | Axial Valve | 3/4" Female NPT Thread x 1/8" Pilot Port | 33mm Hex | 4.92" Length | Straight | Nickel-Plated Brass

4203 20 28 20 by Parker | Axial Valve | 3/4" Female NPT Thread x 1/8" Pilot Port | 33mm Hex | 4.92" Length | Straight | Nickel-Plated Brass

Sale price$312.02

by Parker Hannifin
Axial Valve:4203 - normally closed, double female NPT
Buy More, Save More!
Quantity Price Each
5–14 $293.30
15–29 $265.22
30+ $234.02
Discounts applied in cart/checkout.

Product Data:

Series:
  • 4203 Series
Shape:

Straight

Ends Configuration:
  • 3/4in Female NPT
  • 3/4in Female NPT
  • Some Ends Match
Product Advantages:
      Optimization & Safety
  • Very compact: up to 50% smaller than valves with separate actuators
  • Simple to install: ready-to-use
  • Common sub-base for solenoid control
  • Automation of the open/close function
  • Operation independent of the upstream and downstream pressure in the circuit
      • Performance
  • Full flow: low pressure drop
  • Excellent pressure/temperature performance
  • Compatible with many industrial fluids
Applications:
  • Flow Control
  • Plastic Injection Molding
  • Rubber Industry
  • Pneumatics
  • Textile
  • Printing
  • Packaging
  • Robotics
Working Pressure
  • 150 psi (10 bar)
Working Temperature
  • -4° to 275° F (20° to 135° C)

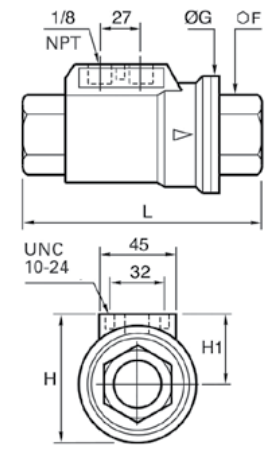

Part Number NPT (C) DN F G H H1 L Oz
4203 10 18 20 3/8" 10 22 mm 1.81" 2.12" 1.21" 3.60" 1.79 lbs
4203 15 22 20 1/2" 15 27 mm 2.03" 2.33" 1.31" 4.13" 2.39 lbs
4203 20 28 20 3/4" 20 33 mm 2.50" 2.76" 1.51" 4.92" 3.60 lbs
4203 40 50 20 1-1/2" 40 60 mm 3.78" 4.01" 2.12" 6.67" 9.22 lbs
4203 50 44 20 2" 50 75 mm 4.29" 4.50" 2.35" 7.39" 14.02 lbs

Pilot port: 1/8 - 27 NPT
Complete with 1/8 NPT silencer
