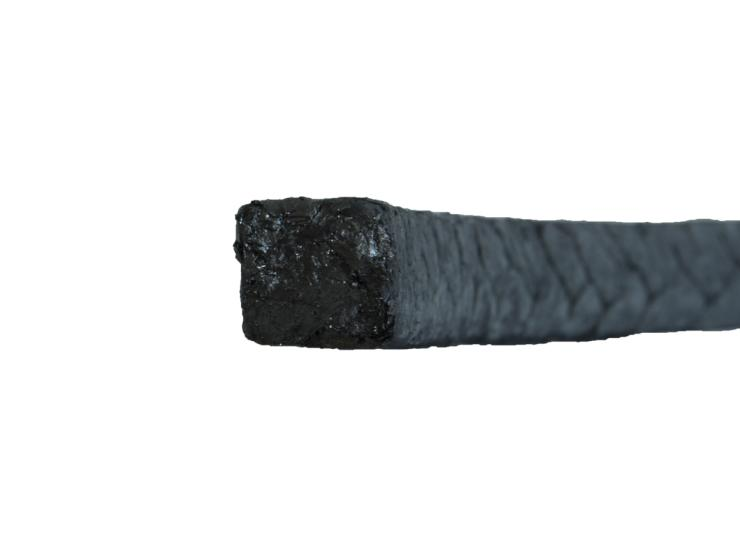

41413-3044 by Garlock | Style 1303-FEP Valve Packing | 0.688in | 10lb Spool
Garlock

41413-3044 by Garlock | Style 1303-FEP Valve Packing | 0.688in | 10lb Spool

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Overview:
  • Garlock Style 1303-FEP combines the low emissions performance of engineered sets with the flexibility and convenience that comes with spool stock compression packing.
  • Resists heat, pressure and chemicals. Compliance with the most stringent VOC and VHAP emissions regulations
Features & Benefits:
  • High performance - Style 1303-FEP has been engineered to deliver compliance to the most stringent VOC (volatile organic compounds) and VHAP (volatile hazardous air pollutant) emission regulations.
  • Easy to use - This single spool stock packing is a quick efficient solution for on the spot field maintenance and repair. It is available in ring sets as well for convenience in planned or scheduled maintenance.
  • Safety - This style has proven itself as class leading sealing solution and is well recognized in hydrocarbon and chemical processing industries. It is a reliable solution, ideally suited for valve stem sealing and is fire safety tested.
Specifications:
  • Material Classification: INCONEL® filament-reinforced flexible graphite
  • Lubrication: Graphite dispersion
  • Construction: Square braid
  • Rotary: No
  • Service Recip: No
  • Valve: Yes
  • Temperature: -328°F (-200°C) to 850°F (455°C) atmosphere; to 1,200°F (650°C) steam**
  • Pressure: to 4,500 psi (310 bar)
  • Shaft Speed: N/A
  • pH: 0-14 (except strong oxidizers)
Applications:
  • Hydrocarbon
  • Chemical processing
  • Power generation
Additional Information:
  • No end rings are required.

Order Code
(Part Number)		 Style Size
(in.)		 Package Size Length per Spool
41413-1008 1303-FEP .125" 1 lb. Spool 77.9 ft
41413-2008 1303-FEP .125" 5 lb. Spool 77.9 ft
41413-1012 1303-FEP .188" 1 lb. Spool 33 ft
41413-2012 1303-FEP .188" 5 lb. Spool 33 ft
41413-1016 1303-FEP .250" 1 lb. Spool 23 ft
41413-2016 1303-FEP .250" 5 lb. Spool 23 ft
41413-1020 1303-FEP .313" 1 lb. Spool 17.2 ft
41413-2020 1303-FEP .313" 5 lb. Spool 17.2 ft
41413-1024 1303-FEP .375" 1 lb. Spool 12.9 ft
41413-2024 1303-FEP .375" 5 lb. Spool 12.9 ft
41413-2028 1303-FEP .438" 5 lb. Spool 9 ft
41449-2028 1303-FEP .438" 10 lb. Spool 9 ft
41413-2032 1303-FEP .500" 5 lb. Spool 5.8 ft
41413-3032 1303-FEP .500" 10 lb. Spool 5.8 ft
41413-2036 1303-FEP .563" 5 lb. Spool 5.4 ft
41413-3036 1303-FEP .563" 10 lb. Spool 5.4 ft
41413-2040 1303-FEP .625" 5 lb. Spool 4 ft
41413-3040 1303-FEP .625" 10 lb. Spool 4 ft
41413-3044 1303-FEP .688" 10 lb. Spool 3.5 ft
41413-2048 1303-FEP .750" 5 lb. Spool 2.9 ft
41413-3048 1303-FEP .750" 10 lb. Spool 2.9 ft
41413-3056 1303-FEP .875" 10 lb. Spool 2.2 ft
41413-3064 1303-FEP 1.000" 10 lb. Spool 1.7 ft
INCONEL® is a registered trademark of Huntington Alloys Corporation.
** For applications over 1,000°F (538°C), please contact Customer Service
