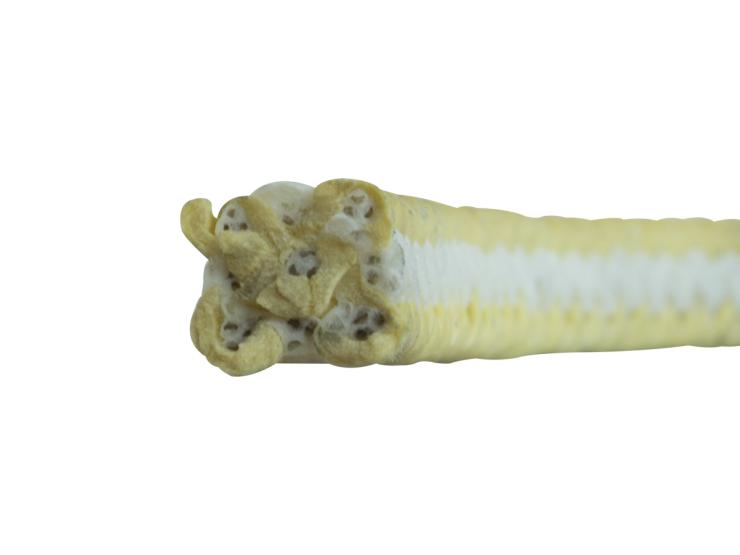

41310-1220 by Garlock | Style 8921-K Synthepak® Packing | 0.313in | 2lb Spool
Garlock

41310-1220 by Garlock | Style 8921-K Synthepak® Packing | 0.313in | 2lb Spool

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Overview:
  • Non-contaminating, braided PTFE for dynamic rotary and reciprocating sealing environments requiring extreme abrasion resistance
  • PTFE impregnation and corner braiding of abrasion-resistant aramid fibers creates this highly durable, non-contaminating, and long life packing.
  • By combining SYNTHEPAK yarns with aramid fiber corners, Garlock has created a unique packing combination which is durable and non-contaminating. Because of the strength of aramid fiber, 8921-K is well-suited to handle high pressure applications - both rotating and reciprocating.
  • 8921-K is an excellent choice for extreme dynamic sealing environments. This style may be utilized with both acids and alkalies, most gases, petroleum and synthetic oils, aromatic and aliphatic solvents, water and salt solutions and many slurries.
Features & Benefits:
  • Greater strength with fewer braid unraveling problems
  • Long life in abrasive situations
  • Surface lubricant for easier run-in
  • Unique, spun synthetic fiber; ideal replacement for asbestos
  • Reduction in shaft and sleeve wear lowers operational costs
  • Versatile, multi-use packing means lower inventory stocking costs
Specifications:
  • Material Classification: Spun synthetic-aramid filament corners
  • Lubrication: PTFE suspensoid & snow-white petrolatum
  • Construction: LATTICE BRAID®
  • Rotary: Yes
  • Service Recip: Yes
  • Valve: Yes
  • Temperature: -170° F (-110° C) to +550° F (+290° C)
  • Pressure: Rotary: to 500 psi (35 bar). Valves: 2,500 psi (173 bar)
  • Shaft Speed: to 2250 fpm plus (11 m/s)
  • pH: 0 - 12
Applications:
  • Dynamic rotary and reciprocating sealing environments requiring extreme abrasion resistance.
  • Pumps
  • Valves
  • Rods
  • Plungers
  • Rams
  • Expansion joints

Order Code
(Part Number)		 Style Size
(in.)		 Package Size Length per Spool
41310-1216 8921-K .250" 2 lb. Spool 23.8 ft
41310-2016 8921-K .250" 5 lb. Spool 23.8 ft
41321-1220 8921-K .313" 2 lb. Spool 13.7 ft
41310-2020 8921-K .313" 5 lb. Spool 13.7 ft
41310-2020 8921-K .375" 2 lb. Spool 10.9 ft
41310-2024 8921-K .375" 5 lb. Spool 10.9 ft
41310-1228 8921-K .438" 2 lb. Spool 8.7 ft
41310-2028 8921-K .438" 5 lb. Spool 8.7 ft
41310-2032 8921-K .500" 5 lb. Spool 6.2 ft
41310-3032 8921-K .500" 10 lb. Spool 6.2 ft
41310-2036 8921-K .563" 5 lb. Spool 5.6 ft
41310-3036 8921-K .563" 10 lb. Spool 5.6 ft
41310-2040 8921-K .625" 5 lb. Spool 4.3 ft
41310-3040 8921-K .625" 10 lb. Spool 4.3 ft
41310-3044 8921-K .688" 10 lb. Spool 3.9 ft
41310-2048 8921-K .750" 5 lb. Spool 3 ft
41310-3048 8921-K .750" 10 lb. Spool 3 ft
41310-3056 8921-K .875" 10 lb. Spool 2.2 ft
41310-3064 8921-K 1.000" 10 lb. Spool 1.7 ft
