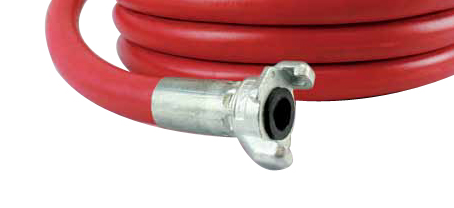

4122-0075-050 by Jason Industrial | 4122 Series | Jackhammer Hose Assembly | 150 PSI | Universal End | 3/4" ID | 1.16" OD | Red | SBR/NBR | 50ft
Jason Industrial Inc. Hose - Air Hose - 4121 & 4122 Jackhammer Hose Assemblies
Package Quantity: 50 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $140.89 |
| 20–59 | $127.40 |
| 60+ | $112.41 |
Discounts applied in cart/checkout.
Product Data:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
150
Tubing Construction:
Cover Construction:
Ends Configuration:
SPECIFICATIONS
| Application: | For jackhammer applications. | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | SBR/NBR blend |
| Reinforcement: | Two-Spiral, Polyester Yarn | Cover: | EPDM |
| Temperature Range: | -22 deg. F (-30 deg. C) to +176 deg. F (+80 deg. C) | Crimp Fittings: | Crimped coupling with universal end |
| Reusable Fittings: | N/A | Branding: | ID 4121 or 4122 300 PSI WP Production Date |
| Other Features: | |||
|
|||
| Part Number | Color | I.D. | O.D. | Reinforcement Spirals | Max. Working Press. @ 68 deg. F** | Vacuum @ 68 deg. F | Weight | Min. Bend Radius | Standard Length | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in. | mm | in. | mm | PSI | BAR | lb./ft. | KG/m | in. | mm | ft | ||||
| Coupled | ||||||||||||||
| 4121-0075-050 | Yellow | 3/4" | 19.05mm | 1.16" | 29.50mm | 2 | 150 PSI | 10.35 BAR | N/A | 0.54 lb./ft. | 0.80 KG/m | 5.00" | 127.00mm | 50ft |
| 4122-0075-050 | Red | 3/4" | 19.05mm | 1.16" | 29.50mm | 2 | 150 PSI | 10.35 BAR | N/A | 0.54 lb./ft. | 0.80 KG/m | 5.00" | 127.00mm | 50ft |
