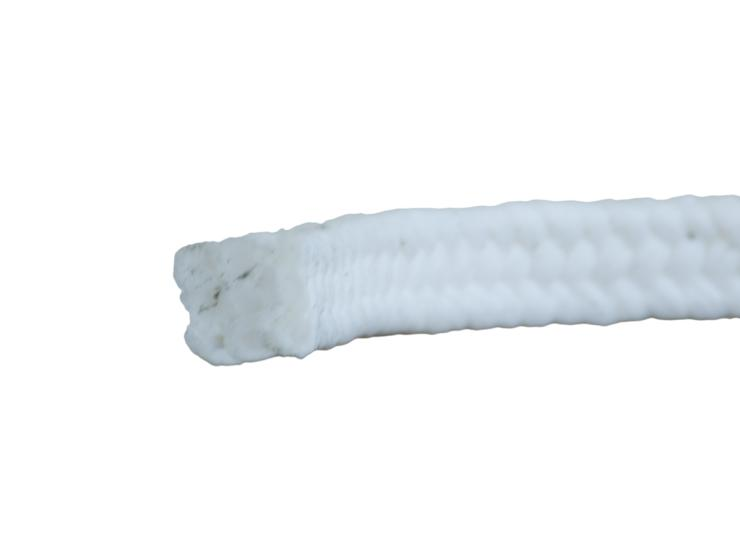

41150-3032 by Garlock | Style 5904 Food Grade PTFE Packing | 0.500in | 10lb Spool
Garlock

41150-3032 by Garlock | Style 5904 Food Grade PTFE Packing | 0.500in | 10lb Spool

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Overview:
  • Chemical resistant and non-toxic PTFE filament
  • Style 5904 is made from high purity PTFE filament lubricated with mineral oil - both of which conform to USDA and FDA standards. It is also highly resistant to chemicals and suitable for use in caustic service. Style 5904 is recommended for use in rotary food processing equipment such as pumps, dryers, blenders, mixers, and cookers, as well as acidic mining pumps.
Features & Benefits:
  • Ideal for food processing applications
  • Pliable, wear-resistant and dimensionally stable
  • Resists most caustic media
  • Ingredients conform to USDA requirements and meet FDA Title 21 CFR 172.878, 177.1550, 178.3570, and 178.3620(a)
Specifications:
  • Material Classification: PTFE filament-FDA
  • Lubrication: PTFE dispersion / mineral oil
  • Construction: LATTICE BRAID®
  • Rotary: Yes
  • Service Recip: No
  • Valve: No
  • Temperature: -450° F (-270° C) to +500° F (+260° C)
  • Pressure: to 500 psi (20 bar) (rotary/centrifugal)
  • Shaft Speed: to 1500 fpm plus (8 m/s)
  • pH: 0-14
Applications:
  • Food processing equipment
  • Pumps
  • Dryers
  • Mixers
  • Cookers
  • Acidic mining pumps

Order Code
(Part Number)		 Style Size
(in.)		 Package Size Length per Spool
41150-1008 5904 .125" 1 lb. Spool N/A
41150-2008 5904 .125" 5 lb. Spool N/A
41150-1012 5904 .188" 1 lb. Spool N/A
41150-2012 5904 .188" 5 lb. Spool N/A
41150-1016 5904 .250" 1 lb. Spool N/A
41150-2016 5904 .250" 5 lb. Spool N/A
41150-1020 5904 .313" 1 lb. Spool N/A
41150-2020 5904 .313" 5 lb. Spool N/A
41150-1024 5904 .375" 1 lb. Spool N/A
41150-2024 5904 .375" 5 lb. Spool N/A
41150-3024 5904 .375" 10 lb. Spool N/A
41150-2028 5904 .438" 5 lb. Spool N/A
41150-3028 5904 .438" 10 lb. Spool N/A
41150-2032 5904 .500" 5 lb. Spool N/A
41150-3032 5904 .500" 10 lb. Spool N/A
41150-2036 5904 .563" 5 lb. Spool N/A
41150-3036 5904 .563" 10 lb. Spool N/A
41150-2040 5904 .625" 5 lb. Spool N/A
41150-3040 5904 .625" 10 lb. Spool N/A
41150-3044 5904 .688" 10 lb. Spool N/A
41150-2048 5904 .750" 5 lb. Spool N/A
41150-3048 5904 .750" 10 lb. Spool N/A
41150-3056 5904 .875" 10 lb. Spool N/A
41150-3064 5904 1.000" 10 lb. Spool N/A
