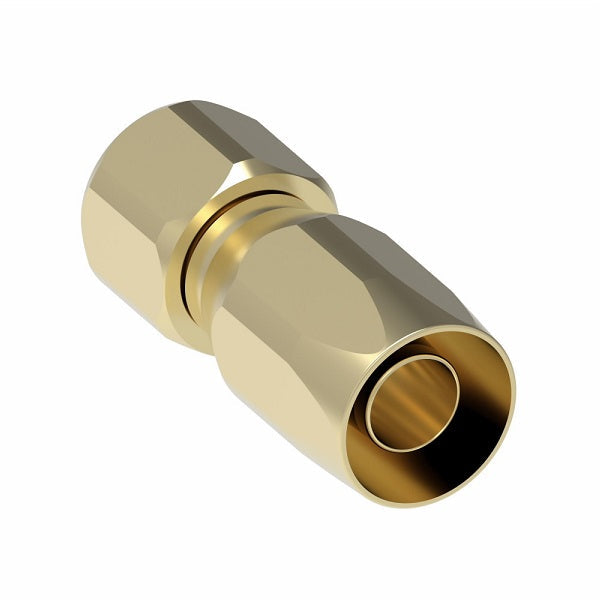

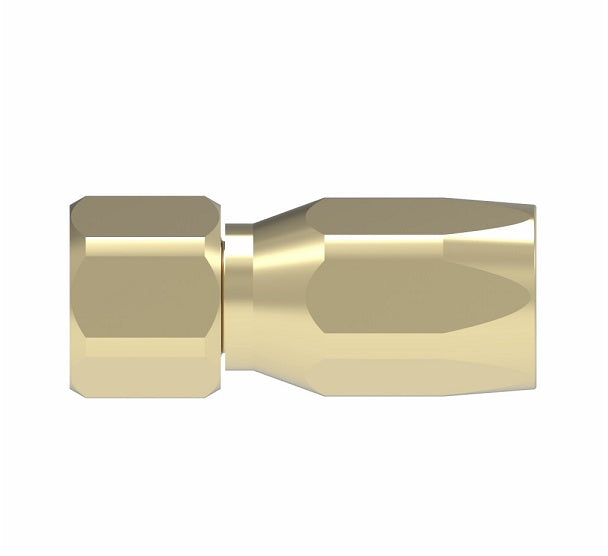

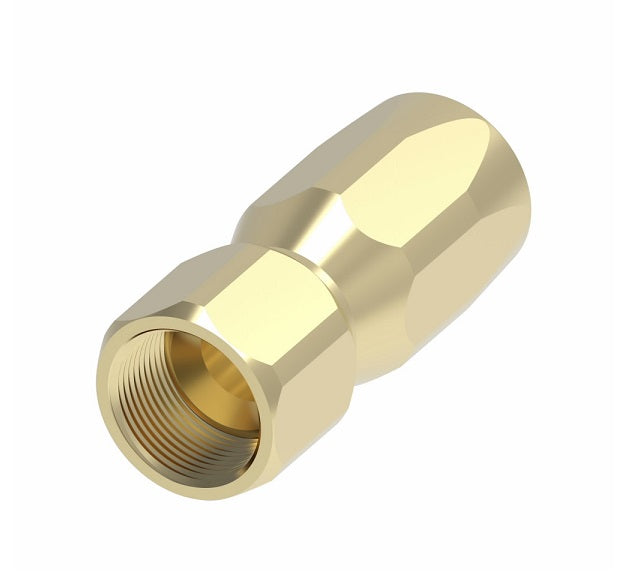

411-5B Aeroquip by Danfoss | Female 37° JIC Swivel 100R5 Reusable Hose Fitting (3 Piece) | -05 Female 37° JIC Swivel x -05 Reusable Hose End | Brass
Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Female 37° JIC Swivel - Straight
Three Piece Fitting.
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $45.06 |
| 40–79 | $40.75 |
| 80+ | $35.96 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
| Note: | |||
|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Brass Part Number |
Stainless Steel Part Number |
Brass & Bronze Part Number |
Hose Size | Thread | A | D | EØ |
| 411-4S | 411-4B | - | - | -04 | 7/16-20 | 1.75" | 1.00" | 0.17" |
| 411-5S | 411-5B | - | - | -05 | 1/2-20 | 1.90" | 1.12" | 0.23" |
| 411-6S | 411-6B | - | - | -06 | 9/16-18 | 2.05" | 1.15" | 0.30" |
| 411-6-4S | - | - | - | -04 | 9/16-18 | 1.85" | 1.10" | 0.17" |
| 411-8S | 411-8B | - | - | -08 | 3/4-16 | 2.52" | 1.38" | 0.39" |
| 411-10S | 411-10B | - | - | -10 | 7/8-14 | 2.80" | 1.51" | 0.48" |
| 411-12S | 411-12B | - | - | -12 | 1-1/16-12 | 3.15" | 1.58" | 0.61" |
| 411-16S | 411-16B | 259-411-16 | - | -16 | 1-5/16-12 | 2.82" | 1.55" | 0.82" |
| 411-16-12S | - | - | - | -12 | 1-5/16-12 | 3.25" | 1.61" | 0.61" |
| 411-20S | 411-20B | 259-411-20 | - | -20 | 1-5/8-12 | 3.00" | 1.64" | 1.05" |
| 411-24S | 411-24B | 259-411-24 | - | -24 | 1-7/8-12 | 3.28" | 1.83" | 1.28" |
| 411-32S | 411-32B | 259-411-32 | - | -32 | 2-1/2-12 | 3.88" | 2.03" | 1.75" |
| - | - | - | 44-411-40 | -40 | 3-12 | 4.16" | 2.25" | 2.20" |
| - | - | - | 44-411-48 | -48 | 3-1/2-12 | 4.28" | 2.38" | 2.80" |
