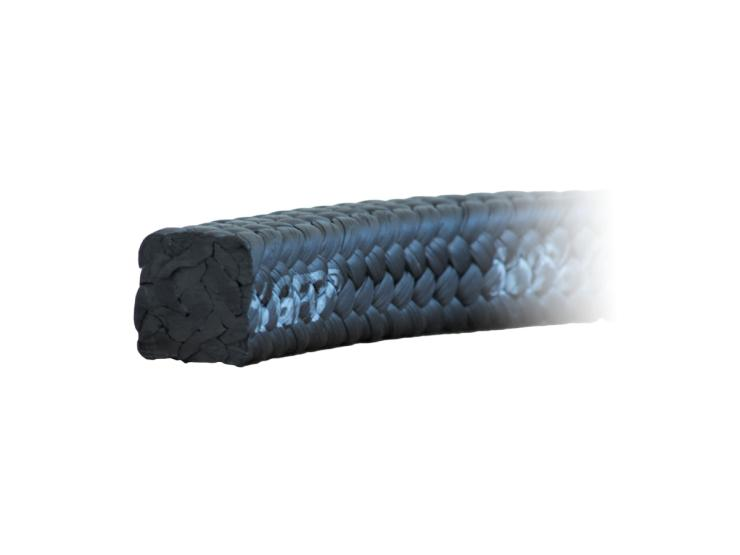

41096-2028 by Garlock | Style 5100 GFO™ Packing | 0.438in | 5lb Spool
Garlock

41096-2028 by Garlock | Style 5100 GFO™ Packing | 0.438in | 5lb Spool

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Overview:
  • An industry standard for over 20 years, Style 5100 provides long life and water efficiency in rotating equipment applications. 100% Gore GFO™ filament yarns and a silicone break-in lubricant.
  • Braided compression Packing made from 100% GFO™ fiber provides consistently high performance in a wide range of applications
  • Unlike other PTFE/graphite Packing, only those made with GFO™ fiber, with its 20+ year history of troublefree performance, deliver an unmatched level of assurance, confidence and easy handling
  • As a proud Seal of Assurance member, Garlock produces Style 5100 to the exacting standards that allow an operation to benefit from reduced maintenance and inventory costs
  • Style 5100 is non-contaminating so it will not contaminate the end product
  • Remember, if it does not say 100% GFO™ on the Packing, then it is not genuine GFO™
Features & Benefits:
  • Does not fray when cut
  • Easy to install
  • Good thermal conductivity
  • Speed capability
  • Chemical resistance
  • Low coefficient of friction
  • Low coefficient of thermal expansion
Specifications:
  • Material Classification: GFO
  • Lubrication: Silicone
  • Construction: LATTICE BRAID®
  • Rotary: Yes
  • Service Recip: No
  • Valve: Yes
  • Temperature: -200°F (-130°C) to 550°F (288°C)
  • Pressure: Rotary: to 300 psi (20 bar) ; Valve to 2,000 psi (138 bar)
  • Shaft Speed: to 4,000 fpm (20 m/s)
  • pH: 0-14 except strong oxidizers
Applications:
  • Equipment:
    • Pumps
    • Mixers
    • Agitators
  • Media:
    • Acids
    • Alkalis
    • Aromatic and aliphatic solvents
    • Alcohols
    • Esters
    • Petroleum and synthetic oils
    • Steam
    • Water
    • Aqueous solutions
    • Air and dry industrial gases

Order Code
(Part Number)		 Style Size
(in.)		 Package Size Length per Spool
41096-1008 5100 .125" 1 lb. Spool N/A
41096-2008 5100 .125" 5 lb. Spool N/A
41096-1012 5100 .188" 1 lb. Spool N/A
41096-2012 5100 .188" 5 lb. Spool N/A
41096-1016 5100 .250" 1 lb. Spool N/A
41096-2016 5100 .250" 5 lb. Spool N/A
41096-1020 5100 .313" 1 lb. Spool N/A
41096-2020 5100 .313" 5 lb. Spool N/A
41096-1224 5100 .375" 2 lb. Spool N/A
41096-2024 5100 .375" 5 lb. Spool N/A
41096-1228 5100 .438" 2 lb. Spool N/A
41096-2028 5100 .438" 5 lb. Spool N/A
41096-2032 5100 .500" 5 lb. Spool N/A
41096-3032 5100 .500" 10 lb. Spool N/A
41096-2036 5100 .563" 5 lb. Spool N/A
41096-3036 5100 .563" 10 lb. Spool N/A
41096-2040 5100 .625" 5 lb. Spool N/A
41096-3040 5100 .625" 10 lb. Spool N/A
41096-3044 5100 .688" 10 lb. Spool N/A
41096-3048 5100 .750" 10 lb. Spool N/A
41096-3056 5100 .875" 10 lb. Spool N/A
41096-3064 5100 1.000" 10 lb. Spool N/A
