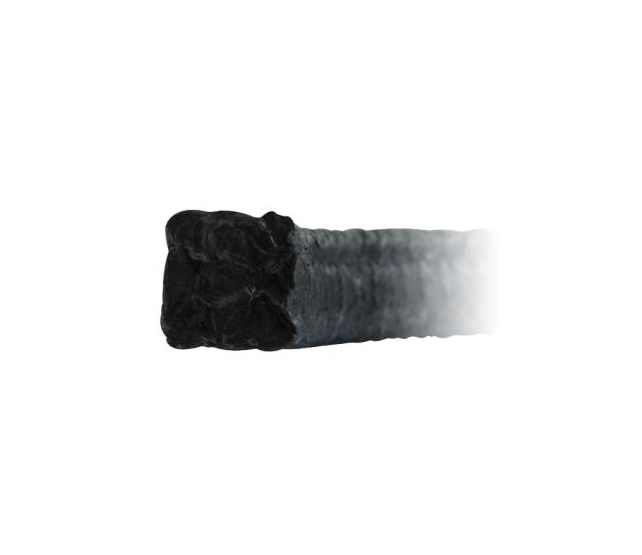

41067-2028 by Garlock | Style G-200 Graphite Packing | 0.438in | 5lb Spool
Garlock

41067-2028 by Garlock | Style G-200 Graphite Packing | 0.438in | 5lb Spool

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Overview:
  • A premium grade, high performance graphite yarn pump packing that is rugged enough to meet many industrial high-temperature applications.
  • Style G-200 offers low friction for energy savings
  • Excellent sealability against abrasives for improved reliability, temperature and chemical resistance for longer packing life
  • G-200 is a good choice for high speed rotary service
Features
  • Requires less run-in
  • Resists many strong chemicals
  • Low coefficient of friction reduces shaft wear
  • Good thermal conductivity
  • Withstands elevated temperatures and aggressive chemicals
  • Ideal end ring (with GRAPH-LOCK® center rings) in valve service
  • Low chloride certification available
Specifications
  • Material Classification: Graphite filament
  • Lubrication: Graphite dispersion
  • Construction: LATTICE BRAID®
  • Rotary: Yes
  • Service Recip: No
  • Valve: Yes
  • Temperature: -328°F (-200°C) to 850°F (455°C). 1,200° (650°C) in steam
  • Pressure: to 500 psi (35 bar) rotary
  • Shaft Speed: to 4,000 fpm (20 m/s)
  • pH: 0-14 (except strong oxidizers)
Applications
  • Pumps
  • Agitators
  • Mixers
  • Crystallizers
  • Filters
  • Continuous digesters
  • Reciprocating pump rods
  • Slip-type expansion joints

Order Code
(Part Number)		 Style Size
(in.)		 Package Size Length per Spool
41067-1008 G-200 0.125" 1 lb. Spool 100ft
41067-1016 G-200 0.250" 1 lb. Spool 34.5ft
41067-2016 G-200 0.250" 5 lb. Spool 34.5ft
41067-1220 G-200 0.313" 2 lb. Spool 21.7ft
41067-2020 G-200 0.313" 5 lb. Spool 21.7ft
41067-1024 G-200 0.375" 1 lb. Spool 16.6ft
41067-2024 G-200 0.375" 5 lb. Spool 16.6ft
41067-1028 G-200 0.438" 1 lb. Spool 11.1ft
41067-2028 G-200 0.438" 5 lb. Spool 11.1ft
41067-1032 G-200 0.500" 1 lb. Spool 8.6ft
41067-1232 G-200 0.500" 2 lb. Spool 8.6ft
41067-2032 G-200 0.500" 5 lb. Spool 8.6ft
41067-1036 G-200 0.563" 1 lb. Spool 6.9ft
41067-2036 G-200 0.563" 5 lb. Spool 6.9ft
41067-2040 G-200 0.625" 5 lb. Spool 5.7ft
41067-2048 G-200 0.750" 5 lb. Spool 4.2ft
41067-3048 G-200 0.750" 10 lb. Spool 4.2ft
41067-3056 G-200 0.875" 10 lb. Spool 3.2ft
41067-3064 G-200 1.000" 10 lb. Spool 2.2ft
