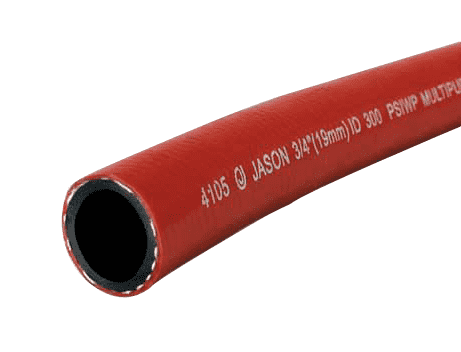

4105-0075-164 by Jason Industrial | 4105 Series | Multi-Purpose Hose | 215 PSI | 3/4" ID | 1.05" OD | Red | TPR | 164ft

4105-0075-164 by Jason Industrial | 4105 Series | Multi-Purpose Hose | 215 PSI | 3/4" ID | 1.05" OD | Red | TPR | 164ft

Sale price$324.05

Jason Industrial Inc. Hose - Air Hose - 4105 Multi-Purpose TPR Hose - Red

Package Quantity: 164 FT

Buy More, Save More!
Quantity Price Each
5–14 $304.61
15–29 $275.44
30+ $243.04
Discounts applied in cart/checkout.

Product Data:

Series:
  • 4105 Series
Color(s):
  • Red
Internal Diameter:
  • 0.75in

SPECIFICATIONS

Application: For air, oil and medium grade fuels used in construction, shipyards, mining and agriculture. SAE Rating: N/A
Other Ratings: ARPM Class A Tube: TPR (NBR/PVC), Smooth, High Oil Resistance, ARPM Class A.
Reinforcement: Single Braid, Synthetic Cover: TPR (NBR/PVC), Smooth, High Oil Resistance, ARPM Class A
Temperature Range: -15 deg. F (-26 deg. C) to +176 deg. F (+80 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: 4105 Jason logo JASON ID in. (mm.) WP PSI MULTIPURPOSE-AIR-WATERPETROLEUM ARPM CLASS A
Other Features:
  • Class A oil mist resistant tube and cover
  • Non-marking cover
  • Ozone and weather resistant
  • Resistant to ultra-violet (UV) light rays
Part Number I.D. O.D. Reinforcement Braids Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR lb./ft. KG/m in. mm ft
Uncoupled
4105-0025-328 1/4" 6.35mm 0.44" 11.18mm 1 300 PSI 20.68 BAR N/A 0.07 lb./ft. 0.10 KG/m 1.70" 43.20mm 328ft
4105-0031-328 5/16" 7.94mm 0.50" 12.70mm 1 300 PSI 20.68 BAR N/A 0.08 lb./ft. 0.12 KG/m 2.10" 53.30mm 328ft
4105-0037-328 3/8" 9.53mm 0.59" 14.99mm 1 300 PSI 20.68 BAR N/A 0.10 lb./ft. 0.15 KG/m 2.50" 63.50mm 328ft
4105-0050-328 1/2" 12.70mm 0.75" 19.05mm 1 300 PSI 20.68 BAR N/A 0.16 lb./ft. 0.24 KG/m 3.30" 83.80mm 328ft
4105-0075-164 3/4" 19.05mm 1.05" 26.59mm 1 215 PSI 14.81 BAR N/A 0.28 lb./ft. 0.42 KG/m 5.00" 127.00mm 164ft
4105-0100-164 1" 25.40mm 1.33" 33.73mm 1 170 PSI 11.71 BAR N/A 0.41 lb./ft. 0.61 KG/m 6.70" 170.20mm 164ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
