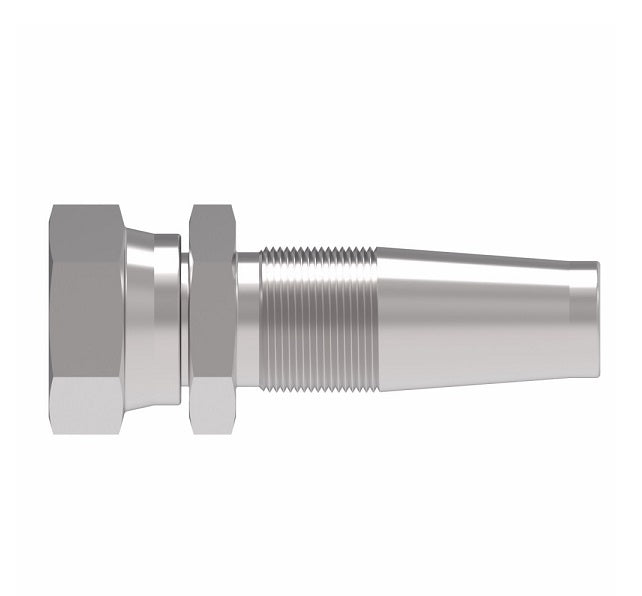

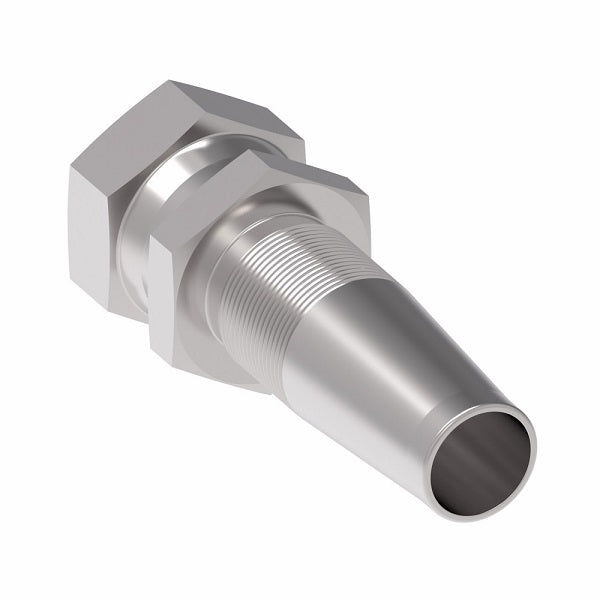

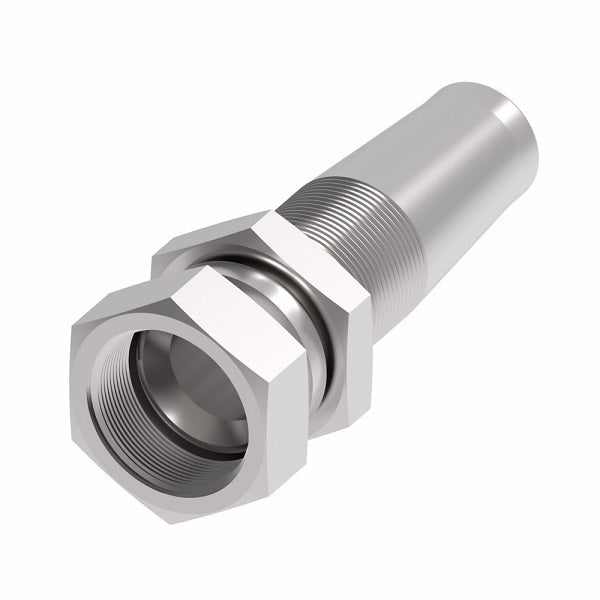

4103-4-16S Weatherhead by Danfoss | Female 37° JIC Swivel Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel
4103-4-16S Weatherhead by Danfoss | Female 37° JIC Swivel Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel
4103-4-16S Weatherhead by Danfoss | Female 37° JIC Swivel Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel

4103-4-16S Weatherhead by Danfoss | Female 37° JIC Swivel Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel

Sale price$55.84

Weatherhead by Danfoss
Field Attachable Fitting for 1 Wire Braided Hose - 1R series - Male Pipe - Straight
Buy More, Save More!
Quantity Price Each
10–39 $52.49
40–79 $47.46
80+ $41.88
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1in Female JIC
  • 1in Reusable Hose End
Material(s):
  • Steel
Features:
  • Non-skive, two-piece crimp Fitting.
  • Clear silver hexavalent chromium-free plating.
  • Carbon steel material.
Component Part Numbers
Complete Fitting
Part Number 		Nipple Assembly
Part Number
Steel 		Nipple Assembly
Part Number
Stainless Steel		 Reusable Socket
Part Number 		Thread Size Hose Size A D E&Oslash
1RA4FJ4 4103-4-4-4S 259-4103-4-4-4 1RA4 7/16-20 -04 2.50" 1.46" 0.17"
- 4103-4-6-6S 259-4103-4-6-6 - -06 - - -
- 4103-4-8-8S 259-4103-4-8-8 - -08 - - -
- 4103-4-6-4S 259-4103-4-6-4 - -04 - - -
1RA6FJ6 - - 1RA6 9/16-18 -06 2.91" 1.78" 0.31"
- 4103-4-8-6S - - -06 - - -
1RA8FJ8 - - 1RA8 3/4-16 -08 3.18" 1.70" 0.39"
- 4103-4-10-8S 259-4103-4-10-8 - -08 - - -
- 4103-4-10S - - -10 - - -
1RA12FJ12 4103-4-12S 259-4103-4-12 1RA12 1-1/16-12 -12 3.80" 2.20" 0.61"
- 4103-4-12-8S - - -08 - - -
- 4103-4-12-10S - - -10 - - -
- 4103-4-14-12S - - -12 - - -
- 4103-4-16-12S - - -12 - - -
1RA16FJ16 4103-4-16S 259-4103-4-16 1RA16 1-5/16-12 -16 4.33" 2.21" 0.82"
- 4103-4-20S - - -20 - - -
- 4103-4-24S - - -24 - - -
- 4103-4-32S - - -32 - - -

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
