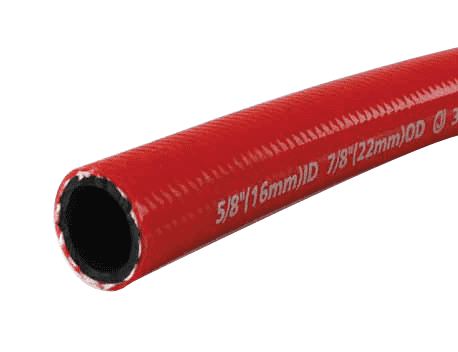

4103-0062-328 by Jason Industrial | 4103 Series | Air Hose | Medium Oil Resistant | 300 PSI | 5/8" ID | 0.91" OD | Red | PVC | 328ft
Jason Industrial Inc. Hose - Air Hose - 4103 Red PVC Air Hose - Medium Oil Resistant
Package Quantity: 328 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $373.49 |
| 15–29 | $337.73 |
| 30+ | $298.00 |
Discounts applied in cart/checkout.
Product Data:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
300
Tubing Construction:
Cover Construction:
SPECIFICATIONS
| Application: | General purpose use, including air, water and mild chemical applications. | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | ARPM Class C | Tube: | PVC, Smooth, Medium Oil Resistance, ARPM Class C |
| Reinforcement: | Single Braid, Synthetic | Cover: | PVC, Smooth, Medium Oil Resistance, ARPM Class C |
| Temperature Range: | -15 deg. F (-26 deg. C) to +150 deg. F (+66 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Branding: | ID XX" (XXmm) Jason logo WP PSI 4103 (Country of Origin) |
| Other Features: | |||
|
|||
| Part Number | I.D. | O.D. | Reinforcement Braids | Max. Working Press. @ 68 deg. F | Vacuum @ 68 deg. F | Weight | Min. Bend Radius | Standard Length | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in. | mm | in. | mm | PSI | BAR | lb./ft. | KG/m | in. | mm | ft | |||
| Uncoupled | |||||||||||||
| 4103-0025-328 | 1/4" | 6.35mm | 0.44" | 11.18mm | 1 | 300 PSI | 20.68 BAR | N/A | 0.07 lb./ft. | 0.10 KG/m | 1.70" | 43.20mm | 328ft |
| 4103-0031-328 | 5/16" | 7.94mm | 0.50" | 12.70mm | 1 | 300 PSI | 20.68 BAR | N/A | 0.08 lb./ft. | 0.12 KG/m | 2.10" | 53.30mm | 328ft |
| 4103-0037-328 | 3/8" | 9.53mm | 0.59" | 14.99mm | 1 | 300 PSI | 20.68 BAR | N/A | 0.10 lb./ft. | 0.15 KG/m | 2.50" | 63.50mm | 328ft |
| 4103-0050-328 | 1/2" | 12.70mm | 0.75" | 19.05mm | 1 | 300 PSI | 20.68 BAR | N/A | 0.16 lb./ft. | 0.24 KG/m | 3.30" | 83.80mm | 328ft |
| 4103-0062-328 | 5/8" | 15.88mm | 0.91" | 23.11mm | 1 | 300 PSI | 20.68 BAR | N/A | 0.22 lb./ft. | 0.33 KG/m | 4.20" | 106.70mm | 328ft |
| 4103-0075-164 | 3/4" | 19.05mm | 1.05" | 26.59mm | 1 | 215 PSI | 14.81 BAR | N/A | 0.28 lb./ft. | 0.42 KG/m | 5.00" | 127.00mm | 164ft |
| 4103-0100-164 | 1" | 25.40mm | 1.33" | 33.73mm | 1 | 170 PSI | 11.71 BAR | N/A | 0.41 lb./ft. | 0.61 KG/m | 6.70" | 170.20mm | 164ft |
| Coupled 1/4" Male NPT x 1/4" Male NPT x 50' Hose Assembly | |||||||||||||
| 4103-037450 | 3/8" | 9.53mm | 0.59" | 14.99mm | 1 | 300 PSI | 20.68 BAR | N/A | 0.10 lb./ft. | 0.15 KG/m | 2.50" | 63.50mm | 50ft |
