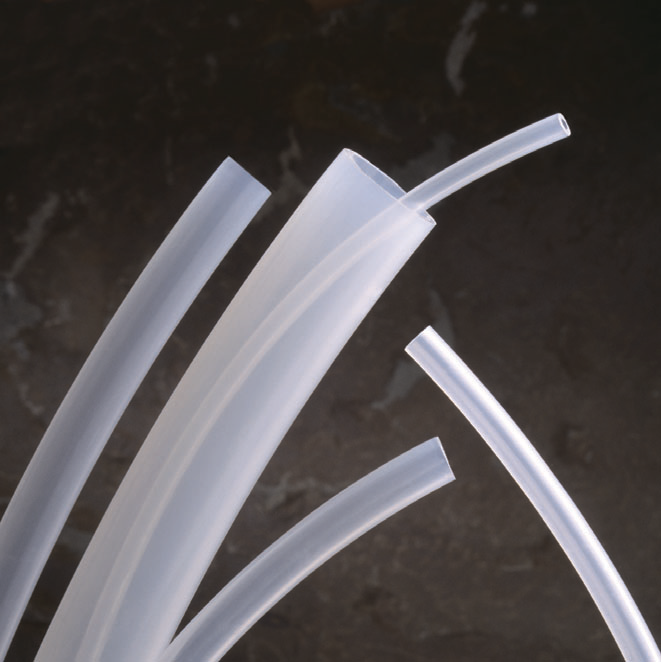

4100495-50 by NewAge | Co-Extruded Polyethylene-lined EVA Tubing | 1" ID x 1-1/4" OD x 1/8" Wall | White | 50ft

4100495-50 by NewAge | Co-Extruded Polyethylene-lined EVA Tubing | 1" ID x 1-1/4" OD x 1/8" Wall | White | 50ft

Sale price$259.32
NewAge Industries - Polyethylene Tubing - Co-Extruded Polyethylene-lined EVA Tubing

Package Quantity: 50 FT

Buy More, Save More!
Quantity Price Each
5–14 $243.76
15–29 $220.42
30+ $194.49
Discounts applied in cart/checkout.

Product Data:

Color(s):
  • White
Internal Diameter:
  • 1in
Outer Diameter:
  • 1.25in
Application: Beverage, Deionized Water Transfer, Food,
Laboratory, Medical, Pharmaceutical		 Tube: Polyethylene
Reinforcement: N/A Cover: EVA
Temperature Range: 160°F Color: White
Opacity: Translucent Specifications FDA, NSF, USP class VI
Other Features:
  • Made from Class VI, FDA-sanctioned ingredients for use with food and beverage contact surfaces
  • Natural translucent color for visual contact with the flow
  • Remains flexible at temperatures from -29°F to 160°F
  • Non-toxic; odorless, tasteless, and inert
  • Remains pliable even after extended contact with alcohol
  • Good weatherability properties - resists gases and moisture
  • Low friction coefficient and good general chemical resistance
  • Made in the USA
Notes:
  • PE-LINED EVA (Ethylene Vinyl Acetate) tubing is designed for use where cleanliness and flexibility are required. It offers good general chemical resistance and non-toxicity. A Co-Extruded product, PE-LINED EVA is made of a low density polyethylene liner with an EVA outer cover. It is manufactured in a patented process (Patent No. 4061461) to ensure the highest bond quality possible.
  • PE-LINED EVA tubing meets Class VI requirements and is suitable for use in poultry and meat processing. PE-LINED EVA also meets or exceeds standards in National Formulary, Vol. 14 for containers for injectables (plastics).
  • For working temperatures up to 180°F and greater stress resistance, ask about irradiated PE- LINED EVA tubing.
Physical Properties**
PE Liner EVA Cover
Hardness, Shore D 50 -
Hardness, Shore A - 80
Tensile Strength, psi 2100 1500
Elongation at Break, % 550 750
Brittle Temperature -29°F -159°F
Max. Operating Temperature 160°F 160°F
Color Translucent Translucent

**Values listed are typical and are meant only as a guide to aid in design. Field testing should be performed to find the actual values for the application.

Part Number Inside Diameter
(mm)		 Outside Diameter
(mm)		 Wall Thickness
(mm)		 Length Working PSI (at 70°F) Burst PSI (at 70°F) Colors Weight
(lbs/100ft)
4100075-50 0.125" (1/8") 0.250" (1/4") 0.063" (1/16") 50 ft 71 PSI 213 PSI White 1.51 Lbs
4100495-50 1.000" 1.250" (1-1/4") 0.125" (1/8") 50 ft 28 PSI 84 PSI White 17.96 Lbs

* Limited stock item; lead times and minimums may apply.
