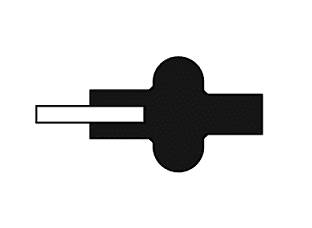

40MPS-U300 Dixon Valve 3" Sanitary Buna-N Mesh Screen Clamp Gasket (316 Stainless Steel Screen)

40MPS-U300 Dixon Valve 3" Sanitary Buna-N Mesh Screen Clamp Gasket (316 Stainless Steel Screen)

Sale price$40.27

Dixon Sanitary Clamp Gaskets - Buna-N Mesh Screen Clamp Gasket

Buy More, Save More!
Quantity Price Each
10–39 $37.85
40–79 $34.23
80+ $30.20
Discounts applied in cart/checkout.

Product Data:

Material(s):
  • 316 Stainless Steel
Seal Material(s):
  • Buna-N/Nitrile Rubber
Features:
  • Color Code: Red dot
  • 10 Mesh.
  • Meets 21CFR 177.2600
  • 316 screen.
Sanitary Size Gasket ID Gasket OD OD of Clamp End ID of Fitting Sanitary Size Gasket ID Gasket OD OD of Clamp End ID of Fitting
1/2" 0.46 0.86 0.992 0.370 3" 2.870 3.579 3.579 2.870
3/4" 0.64 0.86 0.992 0.620 4" 3.834 4.682 4.682 3.834
1" 0.870 1.984 1.984 0.870 6" 5.782 6.562 6.562 5.782
1-1/2" 1.370 1.984 1.984 1.370 8" N/A N/A 8.602 7.782
2" 1.870 2.516 2.516 1.870 10" N/A N/A 10.570 9.782
2-1/2" 2.370 3.047 3.047 2.370 12" N/A N/A 12.570 11.760
Part Number Size Color Code Weight (Lbs.)
40MPS-U100 1" Red dot 0.0150
40MPS-U150 1-1/2" Red dot 0.0100
40MPS-U200 2" Red dot 0.0200
40MPS-U250 2-1/2" Red dot 0.2000
40MPS-U300 3" Red dot 0.0350
40MPS-U400 4" Red dot 0.0600

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
