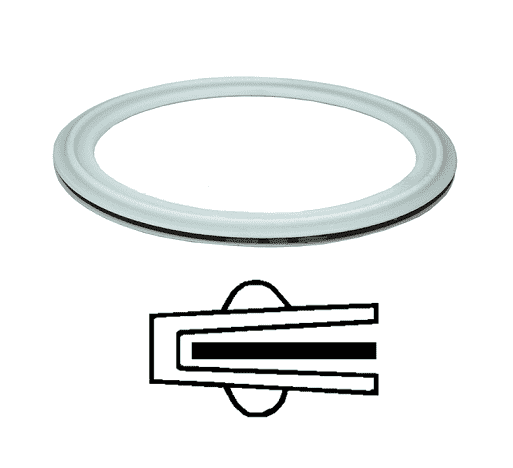

40MP-GRE800 Dixon Valve 8" Sanitary PTFE Envelope Clamp Gasket with EPDM Filler

40MP-GRE800 Dixon Valve 8" Sanitary PTFE Envelope Clamp Gasket with EPDM Filler

Sale price$134.99

Dixon Sanitary Fittings Sanitary Clamp Gasket - PTFE Envelope Clamp Gasket with EPDM Filler
Buy More, Save More!
Quantity Price Each
5–19 $126.89
20–59 $114.74
60+ $101.24
Discounts applied in cart/checkout.

Product Data:

Seal Material(s):
  • PTFE
Features:
  • Color Code: Not usually marked
  • Peroxide cured FKM.
  • Meets 21CFR 177.1550
  • PTFE passed USP Class VI Cytotoxicity testing.
  • Note: PTFE is a material subject to plastic flow. When cycled through heat and then cooled down in process lines, PTFE gaskets will not return to the original configuration and it will continue to compress as the cycling continues. This plastic flow will allow leakage if clamp torques are not maintained.
Part Number Size Weight (Lbs.)
40MP-GRE100 1" 0.0150
40MP-GRE150 1-1/2" 0.0100
40MP-GRE200 2" 0.0150
40MP-GRE250 2-1/2" 0.0200
40MP-GRE300 3" 0.0300
40MP-GRE400 4" 0.0400
40MP-GRE600 6" 0.0530
40MP-GRE800 8" -
40MP-GRE1000 10" -
40MP-GRE1200 12" -

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
