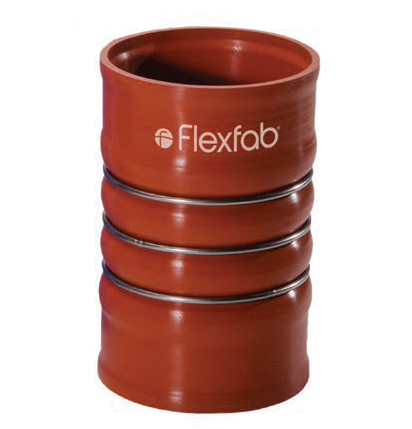

4070-0001 by FlexFab | 4-ply Heavy Wall Charge Air Connector (CAC) Hot Side | 4.00" ID | 4.23" OD | Red | 6" Overall Length
Buy more, save moreDiscounts applied in cart/checkout.
Charge Air Connectors
Heavy Wall Charge Air Connectors & Duraguard™
Heavy-duty 4-ply meta-aramid charge air connectors with heavy-duty stainless steel pressure retention rings, for the hot or cold side — plus Duraguard™ versions with a high-temperature fluorocarbon liner.
1
What are these connectors used for?
- Used on diesel engines to deliver pressurized intake air to the charge air intercooler and intake manifold
- Duraguard™ — the fluorocarbon lining stops closed crankcase vapors from permeating through the sidewall of the intercooler connection bellows at 500°F (260°C).
2
What are the key specifications?
Construction
4-ply heavy-duty silicone-coated meta-aramid fabric with heavy-duty stainless steel pressure retention rings
Duraguard™ Liner
High-temperature fluorocarbon elastomeric liner
Temperature Range
-65°F (-54°C) to +500°F (+260°C)
Wall Thickness
.117" / .163"
Emissions (Duraguard™)
Designed to meet EPA 2007 and EURO IV & V requirements for reduced emissions
Use
Hot side or cold side
3
Which sizes are available?
| Part Number | Inside Diameter | Outside Diameter | Overall Length | Convolutes (Humps) | Stainless Steel Rings | Max. Operating Pressure | Weight | Recommended Clamp |
|---|---|---|---|---|---|---|---|---|
| Hot Side | ||||||||
| 4076-0001 | 2.50" | 2.73" | 6.00" | 2 | 3 | 80 PSI | 0.5 lbs | FLX2583-0250 |
| 4074-0001 | 3.00" | 3.23" | 6.00" | 2 | 3 | 70 PSI | 0.5 lbs | FLX2588-0306 |
| 4073-0001 | 3.50" | 3.73" | 6.00" | 2 | 3 | 70 PSI | 0.5 lbs | FLX2588-0356 |
| 4070-0001 | 4.00" | 4.23" | 6.00" | 2 | 3 | 70 PSI | 0.5 lbs | FLX2588-0406 |
| 4075-0001 | 4.50" | 4.73" | 6.00" | 2 | 3 | 60 PSI | 0.5 lbs | FLX2588-0456 |
| Cold Side | ||||||||
| 4076-0002 | 2.50" | 2.73" | 6.00" | 2 | 3 | 80 PSI | 0.5 lbs | FLX2583-0250 |
| 4074-0002 | 3.00" | 3.23" | 6.00" | 2 | 3 | 70 PSI | 0.5 lbs | FLX2588-0306 |
| 4073-0002 | 3.50" | 3.73" | 6.00" | 2 | 3 | 70 PSI | 0.5 lbs | FLX2588-0356 |
| 4070-0002 | 4.00" | 4.23" | 6.00" | 2 | 3 | 70 PSI | 0.5 lbs | FLX2588-0406 |
| 4075-0002 | 4.50" | 4.73" | 6.00" | 2 | 3 | 60 PSI | 0.5 lbs | FLX2588-0456 |
| Duraguard™ — Fluorocarbon Lined | ||||||||
| 1076-0003 | 2.50" | 2.73" | 6.00" | 2 | 3 | 80 PSI | 0.5 lbs | FLX2583-0250 |
| 1074-0003 | 3.00" | 3.23" | 6.00" | 2 | 3 | 70 PSI | 0.5 lbs | FLX2588-0306 |
| 1073-0003 | 3.50" | 3.73" | 6.00" | 2 | 3 | 70 PSI | 0.5 lbs | FLX2588-0356 |
| 1070-0003 | 4.00" | 4.23" | 6.00" | 2 | 3 | 70 PSI | 0.5 lbs | FLX2588-0406 |
| 1075-0003 | 4.50" | 4.73" | 6.00" | 2 | 3 | 60 PSI | 0.5 lbs | FLX2588-0456 |
Specifications for reference only. Specific test data available on request.
Additional Product Data:
Shape:
Straight
Material(s):
