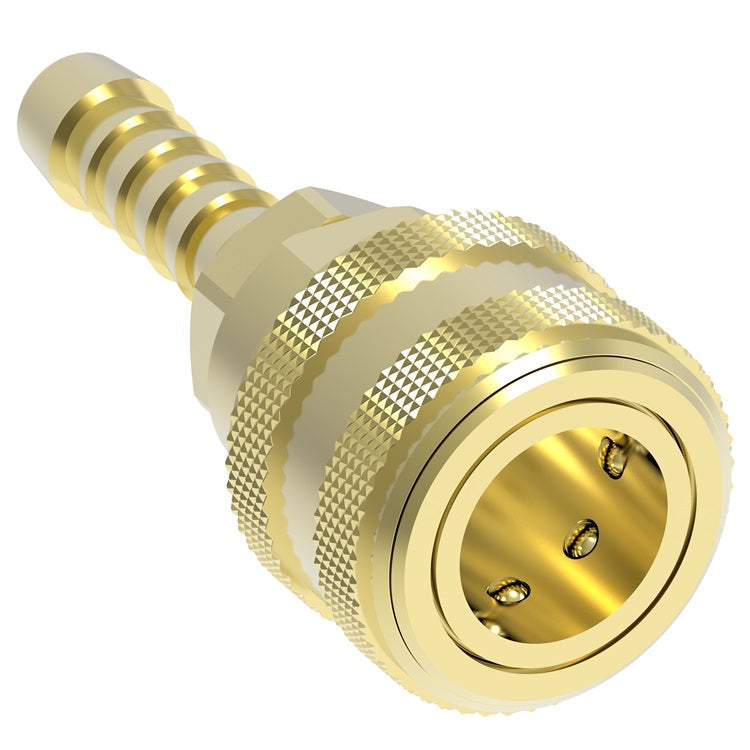

40600 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 4000 Series | Hose Barb End | 3/8" Hose ID x 3/8" Body Size | Socket | NBR Seal | Brass
40600 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 4000 Series | Hose Barb End | 3/8" Hose ID x 3/8" Body Size | Socket | NBR Seal | Brass
40600 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 4000 Series | Hose Barb End | 3/8" Hose ID x 3/8" Body Size | Socket | NBR Seal | Brass

40600 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 4000 Series | Hose Barb End | 3/8" Hose ID x 3/8" Body Size | Socket | NBR Seal | Brass

Sale price$32.58

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 4000 Series

Quick Disconnect for Pneumatic Applications.

Danfoss Hansen 3000/4000/5000/6000 Series Industrial Interchange pin lock pneumatic quick disconnect couplings are designed for compressed air, gases, and liquids.

This series sets the industry standard for pin lock style pneumatic couplings.


In stock
Buy More, Save More!
Quantity Price Each
10–39 $30.63
40–79 $27.69
80+ $24.44
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Hansen
Series:
  • 4000 Series
Shape:

Straight
Features:
  • Easy, automatic, push-to-connect design provides instantaneous connection and disconnection of lines, plus automatic shut-off of socket/female end of line.
Applications & Markets:
  • Industrial Breathing Air
  • General Pneumatics
  • Maintenance & Repair
  • Fluid Transfer
Materials:
  • Standard body material: Brass
  • Standard seal material: Nitrile (NBR)
Specifications:
  • All sizes accept US industrial Interchange; 1/4" & 1/2" also accept ISO 6150 Series B and A-A-59439 plugs/males.
Series Body Size Max. Operating Pressure Min. Burst Pressure Rated Flow
4000 3/8" 69 bar 1,000 psi 276 bar 4,000 psi 1,274 lpm 45 gpm
Interchangeability
All Sizes 1/4" & 1/2"
US Industrial Interchange ISO 6150 Series B
A-A-59439
(former MIL-C-4109)
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
4000 Series | Sockets
Part Number Coupling Type Body Size Hose ID End Type Material Figure Dimensions
A B
40400E Socket/Female 3/8" 1/4" Hose Stem Brass 1 2.82"
(71.63mm)		 1.38"
(35.05mm)
40600 Socket/Female 3/8" 3/8" Hose Stem Brass 1 2.82"
(71.63mm)		 1.38"
(35.05mm)
40800 Socket/Female 3/8" 1/2" Hose Stem Brass 1 2.82"
(71.63mm)		 1.38"
(35.05mm)
4000 Series | Plugs
Part Number Coupling Type Body Size Hose ID End Type Material Figure Dimensions
C D
404 Plug/Male 3/8" 1/4" Hose Stem Steel 2 2.34"
(59.44mm)		 0.72"
(18.29mm)
406 Plug/Male 3/8" 3/8" Hose Stem Steel 2 2.34"
(59.44mm)		 0.63"
(16.00mm)
408 Plug/Male 3/8" 1/2" Hose Stem Steel 2 2.34"
(59.44mm)		 0.81"
(20.57mm)
B406E Plug/Male 3/8" 3/8" Hose Stem Brass 2 2.34"
(59.44mm)		 0.63"
(16.00mm)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
