40405-2028 by Garlock | Style CARBAE 105 Carbon Packing | 0.438in | 5lb Spool
Garlock

40405-2028 by Garlock | Style CARBAE 105 Carbon Packing | 0.438in | 5lb Spool

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Overview:

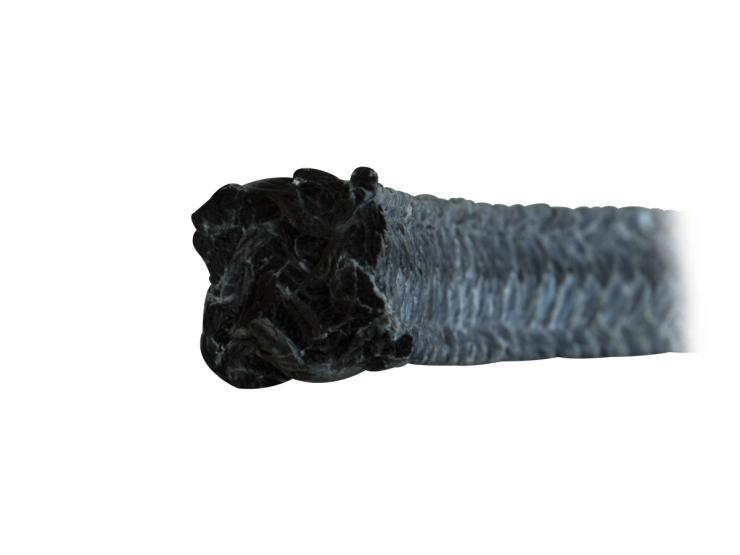

  • CARBAE™ 105 is a state-of-the-art carbon fiber packing that controls your maintenance costs, without compromising performance. Carbae™ 105 is made from a 95% carbon assay, aerospace-grade fiber, coated with PTFE throughout. Carbae™ 105 provides a low coefficient of friction and high thermal conductivity, so your process runs cooler and the packing lasts longer. For unparalleled economy and performance, choose the Carbae™ family of packing.
Features
  • Excellent cost/use ratio
  • Ideal for most industrial equipment
  • Compatible with a wide variety of chemicals
  • Easy to install and remove
Specifications
  • Construction: 95% carbon assay fiber with PTFE coating. LATTICE BRAID®
  • Lubrication: PTFE & snow-white petrolatum
  • Media: Acids, caustics, slurries
  • Equipment: Centrifugal pumps, mixers, agitators
  • Temperature: -328 deg F (-200 deg C) to 600 deg F (316 deg C) atmosphere 1,200 deg F (650 deg C) steam
  • Pressure: to 500 psi (35 bar) rotary/centrifugal
  • Shaft Speed: to 3,000 fpm plus (15 m/s)
  • pH: 0-14 (except strong oxidizers)
  • Rotary: Yes
  • Service Recip: No
  • Valve: No
APPLICATIONS
  • Power generation
  • Chemical and petrochemical
  • Pulp and paper
  • Primary metals
  • General industrial use


Order Code
(Part Number)		 Style Size
(in.)		 Package Size Length per Spool
40405-1012 CARBAE™ 105 0.188" 1 lb. Spool 31.9 ft
40405-2012 CARBAE™ 105 0.188" 5 lb. Spool 31.9 ft
40405-1216 CARBAE™ 105 0.250" 2 lb. Spool 23.3 ft
40405-2016 CARBAE™ 105 0.250" 5 lb. Spool 23.3 ft
40405-1220 CARBAE™ 105 0.313" 2 lb. Spool 15.9 ft
40405-2020 CARBAE™ 105 0.313" 5 lb. Spool 15.9 ft
40405-2024 CARBAE™ 105 0.375" 5 lb. Spool 11.5 ft
40405-3024 CARBAE™ 105 0.375" 10 lb. Spool 11.5 ft
40405-2028 CARBAE™ 105 0.438" 5 lb. Spool 8.3 ft
40405-3028 CARBAE™ 105 0.438" 10 lb. Spool 8.3 ft
40405-2032 CARBAE™ 105 0.500" 5 lb. Spool 6.5 ft
40405-3032 CARBAE™ 105 0.500" 10 lb. Spool 6.5 ft
40405-2036 CARBAE™ 105 0.563" 5 lb. Spool 5.4 ft
40405-3036 CARBAE™ 105 0.563" 10 lb. Spool 5.4 ft
40405-2040 CARBAE™ 105 0.625" 5 lb. Spool 4.4 ft
40405-3040 CARBAE™ 105 0.625" 10 lb. Spool 4.4 ft
40405-2048 CARBAE™ 105 0.750" 5 lb. Spool 3.3 ft
40405-3048 CARBAE™ 105 0.750" 10 lb. Spool 3.3 ft
40405-3056 CARBAE™ 105 0.875" 10 lb. Spool 2.3 ft
40405-3064 CARBAE™ 105 1.000" 10 lb. Spool 1.6 ft
