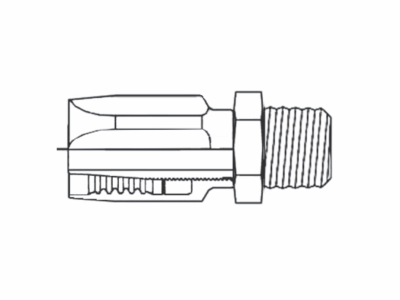

403R-1 by Couplamatic | R1 & R2 Reusable Coupling | 1/4" Hose ID x 1/4-18 Thread Size | for 100R1 Thin Hose NPTF Male Solid | Straight | Trivalent Zinc Plating

403R-1 by Couplamatic | R1 & R2 Reusable Coupling | 1/4" Hose ID x 1/4-18 Thread Size | for 100R1 Thin Hose NPTF Male Solid | Straight | Trivalent Zinc Plating

Sale price$20.21

Couplamatic Systems Inc.
Reusable Couplings - 100R1AT & 100R2AT - R1 & R2 Reusables - NPTF - Male Solid
Buy More, Save More!
Quantity Price Each
10–39 $19.00
40–79 $17.18
80+ $15.16
Discounts applied in cart/checkout.

Product Data:

Series:
  • Reusable Fitting Series
Shape:

Straight

Ends Configuration:
  • 1/4in Male NPTF
  • 1/4in Reusable Hose End
Description:
  • Non-Mandrel and No Skive.
  • Trivalent Zinc Plating.
    		•
    • 1. Screw socket onto hose (left hand thread) until hose bottoms. Back out 1/4 turn.
    • 2. Lubricate insert threads and I.D. of hose. Screw insert into socket until insert hex touches socket.
    Part Number Hose ID Pipe Size Thread Size Hose Type
    403R-1 1/4" 1/4" 1/4-18 100R1 Thin
    403R-2 1/4" 1/4" 1/4-18 100R2 Thin
    603R-1 3/8" 3/8" 3/8-18 100R1 Thin
    603R-2 3/8" 3/8" 3/8-18 100R2 Thin
    803R-1 1/2" 1/2" 1/2-14 100R1 Thin
    803R-2 1/2" 1/2" 1/2-14 100R2 Thin
    1203R-2 3/4" 3/4" 3/4-14 100R2 Thin
    1600R-2 1" 1" 1-11-1/2 100R2 Thin

    Couplamatic Systems Inc

    In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
