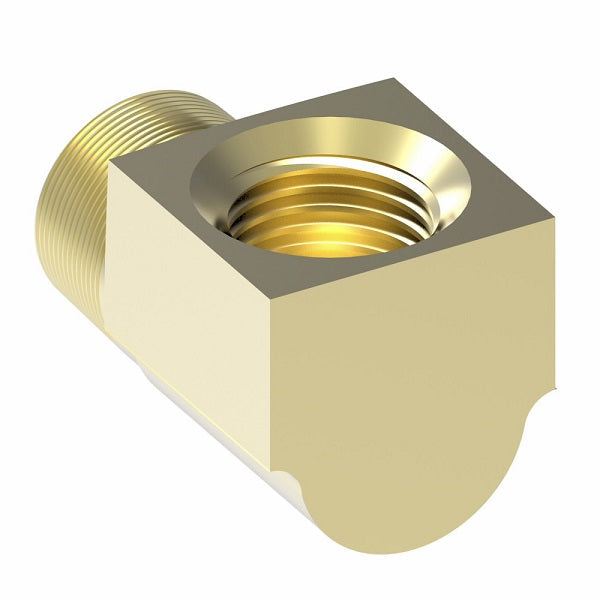

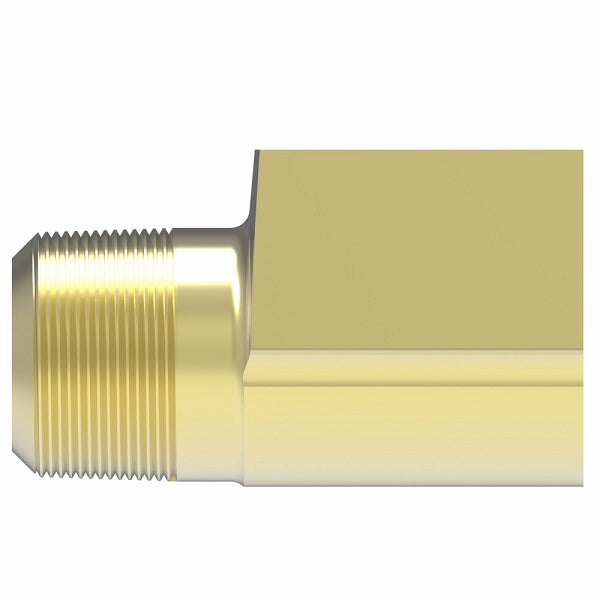

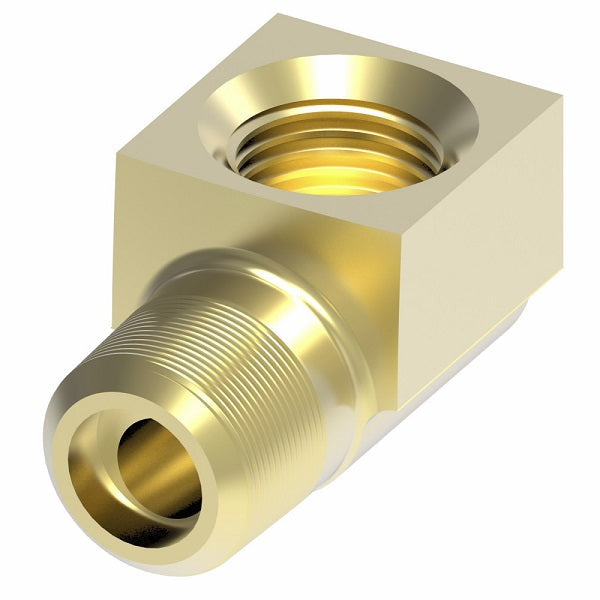

402X5Z by Danfoss | Male NPTF/Inverted Flare 90° Elbow Adapter (with Sealant) | 1/8" Male NPTF x 5/16" Female SAE Inverted Flare | Brass
Minimum Order Quantity: 5 Units
Aeroquip® by Danfoss
Male NPTF/Inverted Flare Adapter
Male NPTF x Female Inverted Flare
90° Elbow
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $5.29 |
| 40–79 | $4.79 |
| 80+ | $4.22 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
| Overview: | |||
|---|---|---|---|
|
|||
| Applications: | |||
|
|||
| Advantages: | |||
|
|||
| Used With: | |||
|
|||
| Pressure: | |||
|
|||
| Temperature Range: | |||
|
|||
| Conformance: | |||
|
| Tube OD | 1/8" | 3/16" | 1/4" | 5/16" | 3/8" | 7/16" | 1/2" | 5/8" | 3/4" | 7/8" | 1" |
| Thread Size | 5/16-28 | 3/8-24 | 7/16-24 | 1/2-20 | 5/8-18 | 11/16-18 | 3/4-18 | 7/8-18 | 1-1/16-16 | 1-3/16-16 | 1-5/16-16 |
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number Brass |
Part Number Brass with Sealant |
Tube O.D. | Male Pipe Thread | D | D1 | L | L1 | M | X |
| 402X2 | - | 1/8" | 1/8" | 0.78" | 0.116" | 0.80" | 0.47" | 0.27" | 0.42" |
| 402X3 | - | 3/16" | 1/8" | 0.125" | 0.125" | 0.85" | 0.47" | 0.27" | 0.47" |
| 402X4 | 402X4Z | 1/4" | 1/8" | 0.188" | 0.177" | 0.92" | 0.55" | 0.33" | 0.53" |
| 431X4* | - | 1/4" | 1/8" | 0.188" | 0.062" | 0.91" | 0.53" | 0.33" | 0.53" |
| 402X4X4 | - | 1/4" | 1/4" | 0.188" | 0.188" | 1.09" | 0.58" | 0.28" | 0.56" |
| 402X5 | 402X5Z | 5/16" | 1/8" | 0.219" | 0.219" | 0.98" | 0.67" | 0.47" | 0.59" |
| 402X5X4 | - | 5/16" | 1/4" | 0.219" | 0.219" | 1.16" | 0.75" | 0.45" | 0.59" |
| 402X6X2 | - | 3/8" | 1/8" | 0.281" | 0.219" | 1.14" | 0.75" | 0.54" | 0.76" |
| 402X6 | 402X6Z | 3/8" | 1/4" | 0.281" | 0.281" | 1.32" | 0.82" | 0.53" | 0.76" |
| 402X6X6 | - | 3/8" | 3/8" | 0.281" | 0.312" | 1.32" | 0.84" | 0.50" | 0.75" |
| 402X8 | 402X8Z | 1/2" | 3/8" | 0.406" | 0.375" | 1.48" | 0.94" | 0.59" | 0.92" |
| 402X8X8 | - | 1/2" | 1/2" | 0.406" | 0.406" | 1.67" | 1.09" | 0.66" | 0.91" |
| 402X12X8 | - | 3/4" | 1/2" | 0.626" | 0.531" | 2.09" | 1.30" | 0.85" | 1.25" |
| 402X14 | - | 7/8" | 3/4" | 0.750" | 0.750" | 2.12" | 1.46" | 0.94" | 1.38" |
| 402X16 | - | 1" | 1" | 0.812" | 0.812" | 2.44" | 1.70" | 1.02" | 1.50" |
* .062 dia. restricted hole through pipe end. Available on special order with any restricted hole size up to .172 dia.
