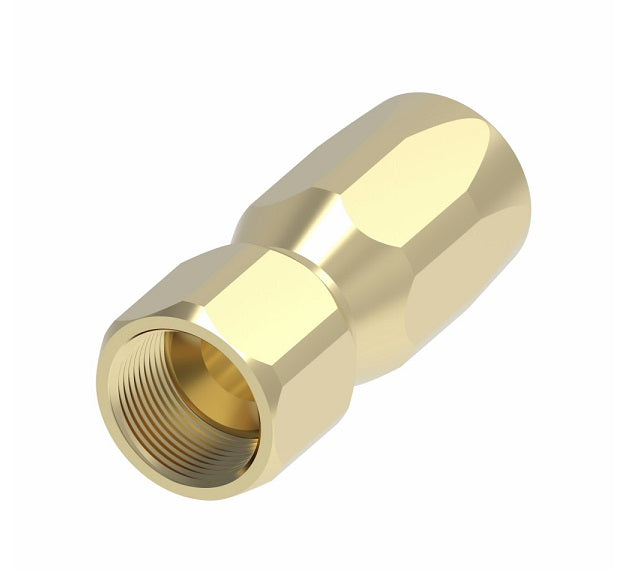

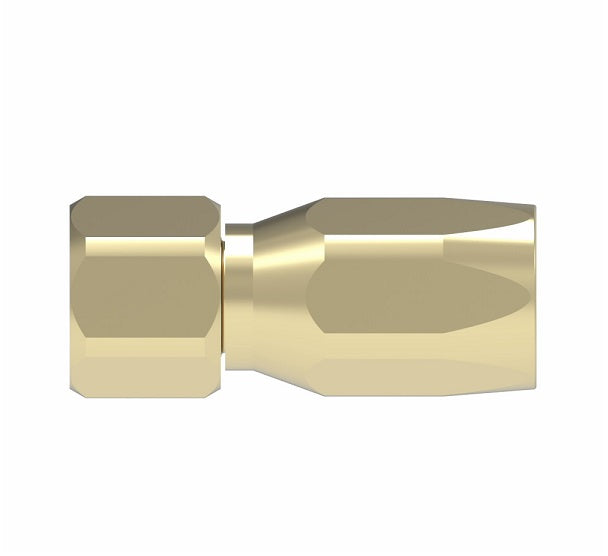

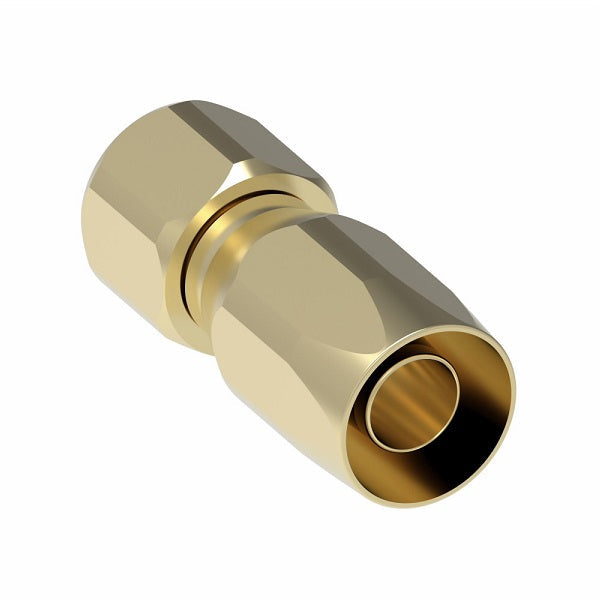

401-4B Aeroquip by Danfoss | Female SAE 45° Swivel 100R5 Reusable Hose Fitting (3 Piece) | -04 Female SAE 45° Swivel x -04 Reusable Hose End | Brass
401-4B Aeroquip by Danfoss | Female SAE 45° Swivel 100R5 Reusable Hose Fitting (3 Piece) | -04 Female SAE 45° Swivel x -04 Reusable Hose End | Brass
401-4B Aeroquip by Danfoss | Female SAE 45° Swivel 100R5 Reusable Hose Fitting (3 Piece) | -04 Female SAE 45° Swivel x -04 Reusable Hose End | Brass

401-4B Aeroquip by Danfoss | Female SAE 45° Swivel 100R5 Reusable Hose Fitting (3 Piece) | -04 Female SAE 45° Swivel x -04 Reusable Hose End | Brass

Sale price$18.63
In stock
Buy more, save moreDiscounts applied in cart/checkout.
Technical Info:
Steel
Part Number 		Brass
Part Number 		Hose Size Thread A D EØ
401-4S* 401-4B* -04 7/16-20 1.75" 1.00" 0.17"
401-5S* - -05 1/2-20 1.90" 1.12" 0.23"
401-6S* 401-6B* -06 5/8-18 2.05" 1.15" 0.30"
401-8S* 401-8B* -08 3/4-16 2.52" 1.38" 0.39"
401-10S* 401-10B* -10 7/8-14 2.80" 1.51" 0.48"
401-12S* 401-12B* -12 1-1/16-14 3.02" 1.45" 0.61"

* Requires tools for assembly.

Additional Product Data:

Shape:

Straight

Ends Configuration:
  • 1/4in Female SAE 45 Flare
  • 1/4in Reusable Hose End
Material(s):
  • Brass

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
