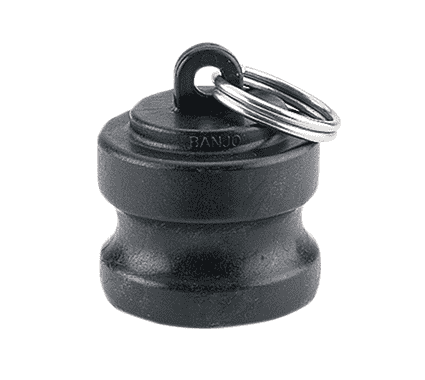

400PL by Banjo | Cam Lever Coupling | 4" Plug Female Coupler | 75 PSI | No Gasket | Polypropylene

400PL by Banjo | Cam Lever Coupling | 4" Plug Female Coupler | 75 PSI | No Gasket | Polypropylene

Sale price$25.51
Buy more, save moreDiscounts applied in cart/checkout.
Applications:
  • Agriculture
  • Industrial
  • Fluids
Features:
  • Stainless steel rings, arms & pins
  • Most complete line of polypropylene couplings available
  • Versatile - interchangeable with all types of cam lever couplers
  • Precision molded - insures a uniform and accurate fit
  • Durable - Polypropylene is glass reinforced for rugged strength and durability
  • Smooth operating - finger rings are designed for easy opening of cam levers
  • Complete series of 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 3" and 4" NPT thread
  • BSP threads available 1" - 3" sizes (excluding 1-1/4")
  • Economical and superior in performance
  • Standard with EPDM gaskets. Buna "N", and FKM (viton type) also available
  • Note: 303B & 303C & All 4" Couplings have 3 Arms for POSITIVE SEAL!
  • WARNING: Couplings should not be disconnected under pressure or with liquid in the line.
  • For other sizes & replacement parts, see: Banjo Polypropylene Cam Lever Couplings & Replacement Parts
Guide:
Part Number Type End Type Max PSI Gasket
400A Part A 4" Male Adapter x 4" Female NPT 75 PSI N/A
400B Part B 4" Female Coupler with 3 Arms x 4" Male NPT 150 PSI EPDM
400C Part C 4" Female Coupler with 3 Arms x 4" Hose Shank 150 PSI EPDM
400D Part D 4" Female Coupler with 3 Arms x 4" Female NPT 100 PSI EPDM
400E Part E 4" Male Adapter x 4" Hose Shank 50 PSI N/A
400F Part F 4" Male Adapter x 4" Male NPT 75 PSI N/A
400CAP Part CAP 4" Cap with 2 Arms - Male Adapter 100 PSI EPDM
400PL Part PL 4" Plug - Female Coupler 75 PSI N/A
Note: 1/4", 3/8" and 1/2" series couplings interchange with 3/4" size couplings. Coupling ends are 3/4" size 1-1/4" series couplings interchange with 1" size couplings. Coupling ends are 1" size. 1-1/2" x 1-1/4" couplings interchange with 1-1/2" size couplings. Coupling ends are 1-1/2" size .b½ª _x0002_

Additional Product Data:

Shape:

Straight

Cam & Groove Type:

Type DP

Ends Configuration:
  • 4in Male Cam & Groove

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
