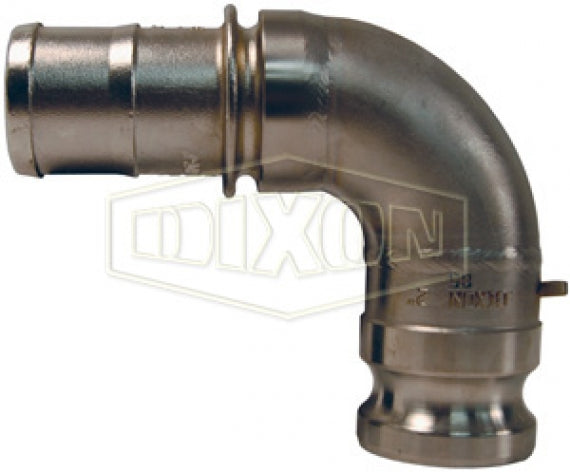

400E-90SS by Dixon Valve | Cam & Groove Fitting | 90° Elbow | Type E | 4" Adapter x 4" Hose Shank | 316 Stainless Steel

400E-90SS by Dixon Valve | Cam & Groove Fitting | 90° Elbow | Type E | 4" Adapter x 4" Hose Shank | 316 Stainless Steel

Sale price$726.88

Dixon Valve
Cam & Groove Coupler | 90° Elbow | Type E | Adapter x Hose Shank

Designed for use with liquids.
Buy More, Save More!
Quantity Price Each
5–14 $683.27
15–29 $617.85
30+ $545.16
Discounts applied in cart/checkout.

Product Data:

MAWP:

100

Shape:

90 Degree

Cam & Groove Type:

Type E
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
  • Pressure rating is based on the seal of the mating part.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
356T6 Aluminum
Part Number		 316 Stainless Steel
Part Number		 Size Maximum Operating Pressure
- 200E-90SS* 2" 250 PSI
300E-90AL 300E-90SS 3" 125 PSI
400E-90AL 400E-90SS* 4" 100 PSI

* Parts are produced as a welded fabrication.

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
