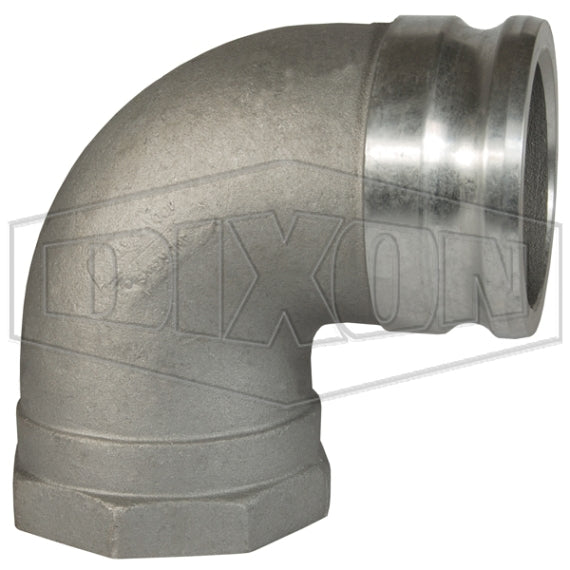

400A-90AL by Dixon Valve | Cam & Groove Adapter | 90° Elbow | Type A | 4" Adapter x 4" Female NPT | Aluminum

400A-90AL by Dixon Valve | Cam & Groove Adapter | 90° Elbow | Type A | 4" Adapter x 4" Female NPT | Aluminum

Sale price$187.72

Dixon Valve
Cam & Groove Coupler | 90° Elbow | Type A | Adapter x Female NPT

Designed for use with liquids.
Buy More, Save More!
Quantity Price Each
5–19 $176.46
20–59 $159.56
60+ $140.79
Discounts applied in cart/checkout.

Product Data:

MAWP:

100

Shape:

90 Degree

Cam & Groove Type:

Type A
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
  • Pressure rating is based on the seal of the mating part.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
356T6 Aluminum
Part Number		 316 Stainless Steel
Part Number		 Size Maximum Operating Pressure
150A-90AL 1-1/2" 250 PSI
200A-90AL 200A-90SS* 2" 250 PSI
300A-90AL 300A-90SS 3" 125 PSI
400A-90AL 4" 100 PSI

* Parts are produced as a welded fabrication.
