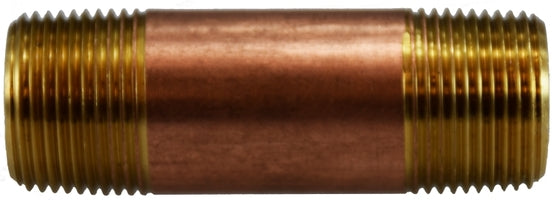

40088 by Midland | Lead Free Schedule 40 Seamless Nipple | 3/4" Diameter | 5" Length | Red Brass
Midland Industries
Brass Nipple - Lead Free Schedule 40 Seamless Nipple - 3/4" Diameter
Certified by NSF to NSF/ANSI 61 for use in drinking water supplies of pH 6.5 and above.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $26.61 |
| 40–79 | $24.06 |
| 80+ | $21.23 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Specifications and Approvals:
Special Properties:
| Statement From Midland Industries: | |||
|---|---|---|---|
|
|||
| Specifications: | |||
|
| Standard Red Brass 85% Pipe With Threaded Ends Specifications: |
|||||||
|---|---|---|---|---|---|---|---|
| Pipe Size in |
Dimensions | Allowable Pressure Pounds per Square Inch |
|||||
| OD | ID | Wall Thickness | at 100° | at 200° | at 300° | at 400° | |
| 1/8" | .405" | .281" | .062" | 370 | 370 | 320 | 140 |
| 1/4" | .540" | .376" | .082" | 870 | 870 | 760 | 330 |
| 3/8" | .675" | .495" | .090" | 890 | 890 | 780 | 340 |
| 1/2" | .840" | .626" | .107" | 900 | 900 | 790 | 340 |
| 3/4" | 1.050" | .822" | .114" | 810 | 810 | 710 | 310 |
| 1" | 1.315" | 1.063" | .126" | 630 | 630 | 560 | 240 |
| 1-1/4" | 1.660" | 1.368" | .146" | 690 | 690 | 610 | 260 |
| 1-1/2" | 1.900" | 1.600" | .150" | 630 | 630 | 560 | 240 |
| 2" | 2.375" | 2.063" | .156" | 540 | 540 | 480 | 210 |
| 2-1/2" | 2.875" | 2.501" | .187" | 450 | 450 | 390 | 170 |
| 3" | 3.500" | 3.062" | .219" | 510 | 510 | 450 | 190 |
| 3-1/2" | 4.000" | 3.500" | .250" | 570 | 570 | 500 | 220 |
| 4" | 4.500" | 4.000" | .250" | 510 | 510 | 440 | 190 |
| 4-1/2" | 5.000" | 4.500" | .250" | - | - | - | - |
| 5" | 5.563" | 5.063" | .250" | 410 | 410 | 360 | 160 |
| 6" | 6.625" | 6.125" | .250" | 340 | 340 | 300 | 130 |
| Crossover Series: |
|---|
| 113RB |
 |
||
|---|---|---|
| Part Number | Length | Approx. Wt. lbs. |
| 40080 (40-080) |
Close (1-3/8") | 0.15 |
| 40081 (40-081) |
1-1/2" | 0.16 |
| 40082 (40-082) |
2" | 0.21 |
| 40083 (40-083) |
2-1/2" | 0.27 |
| 40084 (40-084) |
3" | 0.32 |
| 40085 (40-085) |
3-1/2" | 0.37 |
| 40086 (40-086) |
4" | 0.43 |
| 40087 (40-087) |
4-1/2" | 0.48 |
| 40088 (40-088) |
5" | 0.53 |
| 40089 (40-089) |
5-1/2" | 0.59 |
| 40090 (40-090) |
6" | 0.64 |
| 40091 (40-091) |
7" | 0.75 |
| 40092 (40-092) |
8" | 0.85 |
| 40093 (40-093) |
9" | 0.96 |
| 40094 (40-094) |
10" | 1.06 |
| 40095 (40-095) |
11" | 1.17 |
| 40096 (40-096) |
12" | 1.28 |
| 40097 (40-097) |
18" | 1.92 |
| 40098 (40-098) |
24" | 2.56 |
| 40099 (40-099) |
36" | 3.84 |
