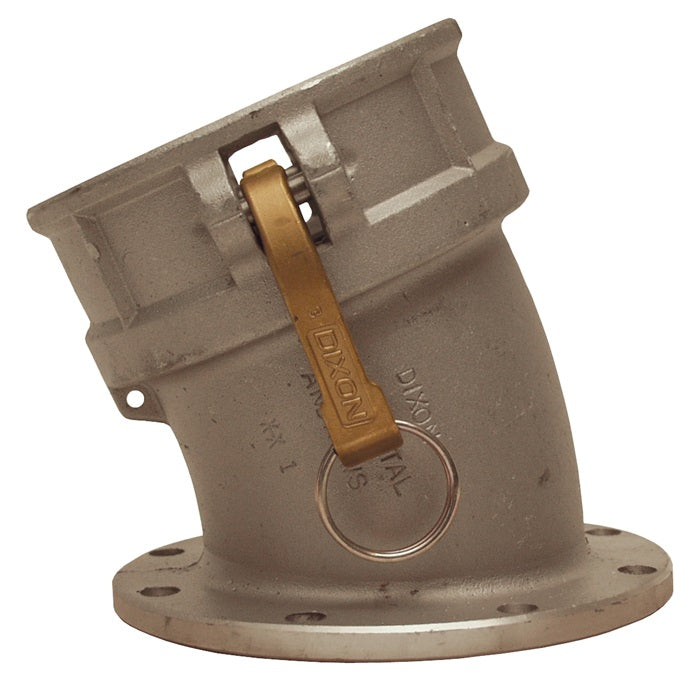

40022DLTAL by Dixon Valve | Cam & Groove TTMA Flange Coupler | 22-1/2° Elbow | 4" Coupler x 4" TTMA Flange | Aluminum

40022DLTAL by Dixon Valve | Cam & Groove TTMA Flange Coupler | 22-1/2° Elbow | 4" Coupler x 4" TTMA Flange | Aluminum

Sale price$135.30

Dixon Valve
Tank Truck | Cam & Groove Coupler x TTMA Flange | 22-1/2° Elbow

Designed for use with liquids.
Buy More, Save More!
Quantity Price Each
5–19 $127.18
20–59 $115.01
60+ $101.48
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Bayco
Shape:

22.5 Degree

Cam & Groove Type:

Other
Construction:
  • Buna-N Gasket.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Safety Note:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
356T6 Aluminum
Part Number		 Coupler x TTMA Flange
40022DLTAL 4" x 4"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
