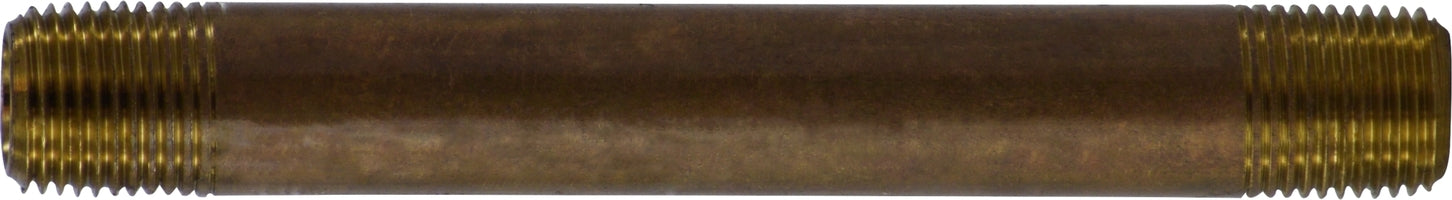

40014 by Midland | Lead Free Schedule 40 Seamless Nipple | 1/8" Diameter | 9" Length | Red Brass
Midland Industries
Brass Nipple - Lead Free Schedule 40 Seamless Nipple - 1/8" Diameter
Certified by NSF to NSF/ANSI 61 for use in drinking water supplies of pH 6.5 and above.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $20.73 |
| 40–79 | $18.74 |
| 80+ | $16.54 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Specifications and Approvals:
Special Properties:
| Statement From Midland Industries: | |||
|---|---|---|---|
|
|||
| Specifications: | |||
|
| Standard Red Brass 85% Pipe With Threaded Ends Specifications: |
|||||||
|---|---|---|---|---|---|---|---|
| Pipe Size in |
Dimensions | Allowable Pressure Pounds per Square Inch |
|||||
| OD | ID | Wall Thickness | at 100° | at 200° | at 300° | at 400° | |
| 1/8" | .405" | .281" | .062" | 370 | 370 | 320 | 140 |
| 1/4" | .540" | .376" | .082" | 870 | 870 | 760 | 330 |
| 3/8" | .675" | .495" | .090" | 890 | 890 | 780 | 340 |
| 1/2" | .840" | .626" | .107" | 900 | 900 | 790 | 340 |
| 3/4" | 1.050" | .822" | .114" | 810 | 810 | 710 | 310 |
| 1" | 1.315" | 1.063" | .126" | 630 | 630 | 560 | 240 |
| 1-1/4" | 1.660" | 1.368" | .146" | 690 | 690 | 610 | 260 |
| 1-1/2" | 1.900" | 1.600" | .150" | 630 | 630 | 560 | 240 |
| 2" | 2.375" | 2.063" | .156" | 540 | 540 | 480 | 210 |
| 2-1/2" | 2.875" | 2.501" | .187" | 450 | 450 | 390 | 170 |
| 3" | 3.500" | 3.062" | .219" | 510 | 510 | 450 | 190 |
| 3-1/2" | 4.000" | 3.500" | .250" | 570 | 570 | 500 | 220 |
| 4" | 4.500" | 4.000" | .250" | 510 | 510 | 440 | 190 |
| 4-1/2" | 5.000" | 4.500" | .250" | - | - | - | - |
| 5" | 5.563" | 5.063" | .250" | 410 | 410 | 360 | 160 |
| 6" | 6.625" | 6.125" | .250" | 340 | 340 | 300 | 130 |
| Crossover Series: |
|---|
| 113RB |
 |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Length | Approx. Wt. lbs. |
|||||||||||||
| 40001 (40-001) |
Close (3/4") | 0.02 | |||||||||||||
| 40002 (40-002) |
1-1/2" | 0.03 | |||||||||||||
| 40003 (40-003) |
2" | 0.04 | |||||||||||||
| 40004 (40-004) |
2-1/2" | 0.05 | |||||||||||||
| 40005 (40-005) |
3" | 0.06 | |||||||||||||
| 40006 (40-006) |
3-1/2" | 0.07 | |||||||||||||
| 40007 (40-007) |
4" | 0.08 | |||||||||||||
| 40008 (40-008) |
4-1/2" | 0.10 | |||||||||||||
| 40009 (40-009) |
5" | 0.11 | |||||||||||||
| 40010 (40-010) |
5-1/2" | 0.12 | |||||||||||||
| 40011 (40-011) |
6" | 0.13 | |||||||||||||
| 40012 (40-012) |
7" | 0.15 | |||||||||||||
| 40013 (40-013) |
8" | 0.17 | |||||||||||||
| 40014 (40-014) |
9" | 0.19 | |||||||||||||
| 40015 (40-015) |
10" | 0.21 | |||||||||||||
| 40017 (40-017) |
12" | 0.25 | |||||||||||||
| 40019 (40-019) |
16" | 0.34 | |||||||||||||
