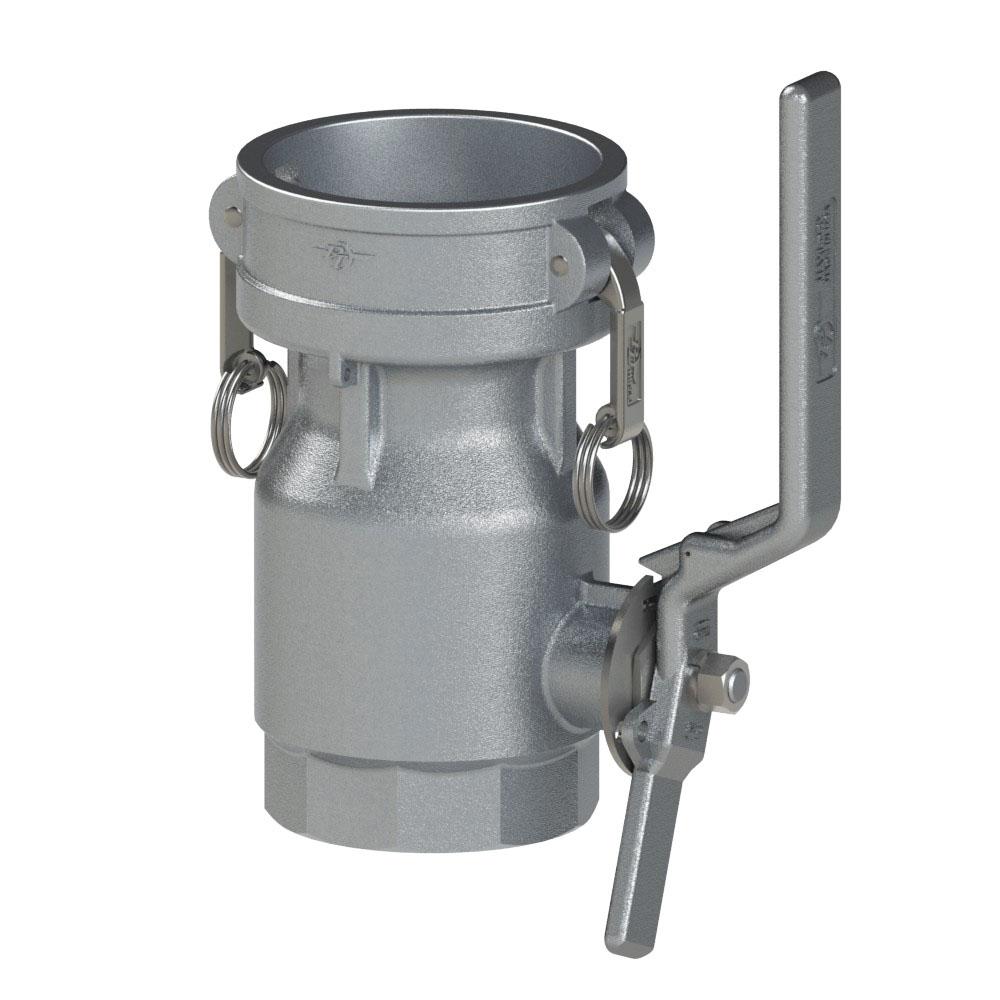

40001500E (MD15D) by PT-Coupling | MAXI-DRY® Dry Disconnect Coupler | 1-1/2" Coupler x 1-1/2" Female NPT | Aluminum | EPDM Seal
PT Coupling
Petroleum Handling | MAXI-DRY® Dry Disconnect Coupler | Type MDD | Coupler x Female NPT
Made in the USA.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $563.49 |
| 15–29 | $509.54 |
| 30+ | $449.60 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Material(s):
Seal Material(s):
| Overview: | |||
|---|---|---|---|
|
|||
| Features & Applications: | |||
|
 |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Aluminum with | |||||||||||||||
| Part Name |
Buna Seal Item # |
Viton® Seal Item # |
Teflon® Seal Item # |
EPDM Seal Item # |
Coupler Size |
Female NPT Thread (H) |
A | B | C | D | E | F | G | I | Pressure Rating |
| MD15D | 40001500 | 40001500V | 40001500T | 40001500E | 1-1/2" | 1-1/2" | 6.9" | 1.5" | 3.9" | 6.1" | 4.1" | 2.5" | 5.0" | 2.0" | 200 PSI |
| MD20D | 40000200 | 40000200V | 40000200T | 40000200E | 2" | 2-1/2" | 7.5" | 2.0" | 4.4" | 6.1" | 4.3" | 2.5" | 5.1" | 2.5" | 150 PSI |
| MD30D | 40000300 | 40000300V | 40000300T | 40000300E | 3" | 3" | 9.5" | 2.5" | 6.5" | 9.0" | 5.5" | 4.0" | 6.0" | 4.0" | 125 PSI |
| MD40D | 40000342 | 40000342V | - | - | 4" | 4" | 9.5" | 2.5" | 6.5" | 9.0" | 5.5" | 4.0" | 6.2" | 4.0" | 125 PSI |
