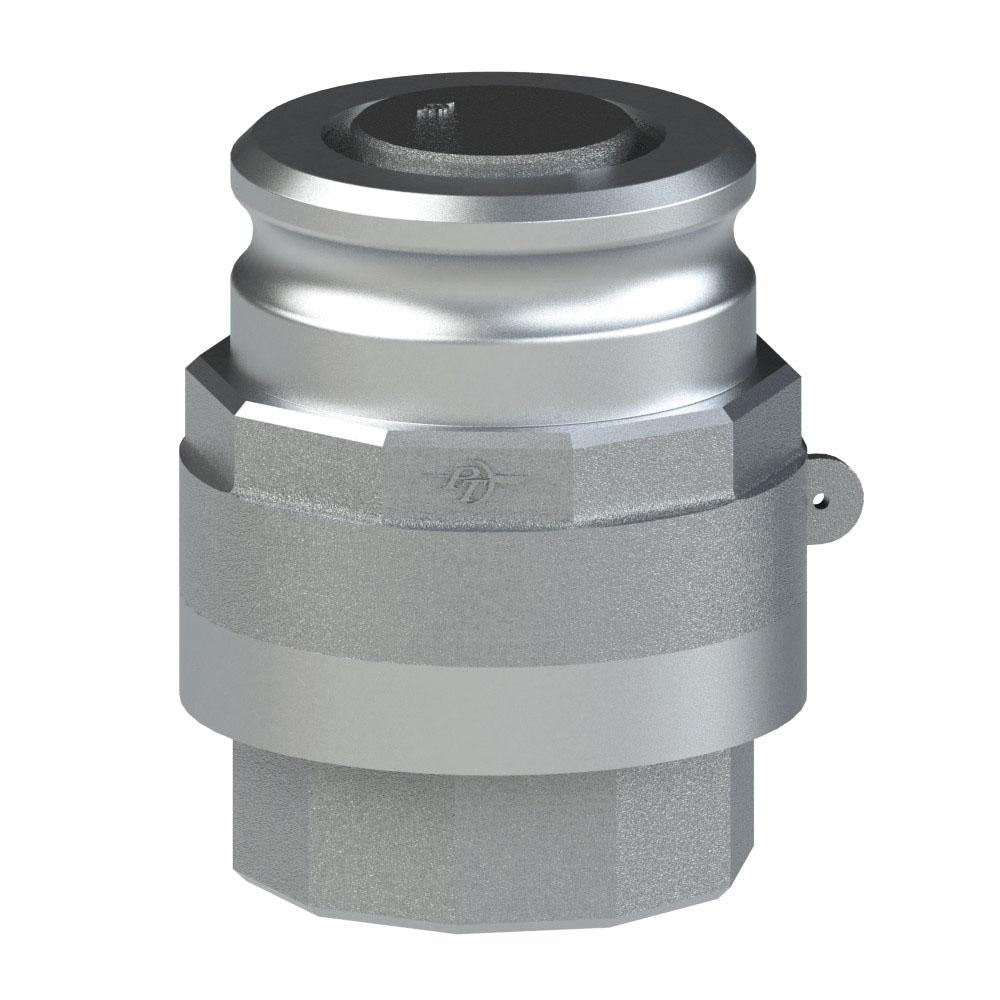

40000330 (MD30A) by PT-Coupling | MAXI-DRY® Dry Disconnect Adapter | 3"Adapter x 3" Female NPT | Aluminum | Buna Seal
PT Coupling
Petroleum Handling | MAXI-DRY® Dry Disconnect Adapter | Type MDA | Adapter x Female NPT
Made in the USA.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $353.43 |
| 15–29 | $319.59 |
| 30+ | $281.99 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Material(s):
Seal Material(s):
| Overview: | |||
|---|---|---|---|
|
|||
| Features & Applications: | |||
|
 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Name |
Aluminum with Buna Seal Item # |
Aluminum with Viton® Seal Item # |
Aluminum with Teflon® Seal Item # |
Aluminum with EPDM Seal Item # |
Adapter Size |
Female NPT Thread (Q) |
Overall Length (O) |
Width (P) |
Coupler Size (R) |
Pressure Rating |
| MD15A | 40001530 | 40001530V | 40001530T | 40001530E | 1-1/2" | 1-1/2" | 4.3" | 3.2" | 2" | 200 PSI |
| MD20A | 40000230 | 40000230V | 40000230T | 40000230E | 2" | 2" | 5.2" | 3.7" | 2.5" | 150 PSI |
| MD30A | 40000330 | 40000330V | 40000330T | 40000330E | 3" | 3" | 6.8" | 5.6" | 4" | 125 PSI |
| MD40A | 40000340 | 40000340V | - | - | 4" | 4" | 6.8" | 5.6" | 4" | 125 PSI |
